Advanced solids control solutions for oil and gas drilling operations worldwide
First-phase cleaning equipment for efficient separation of drilling cuttings

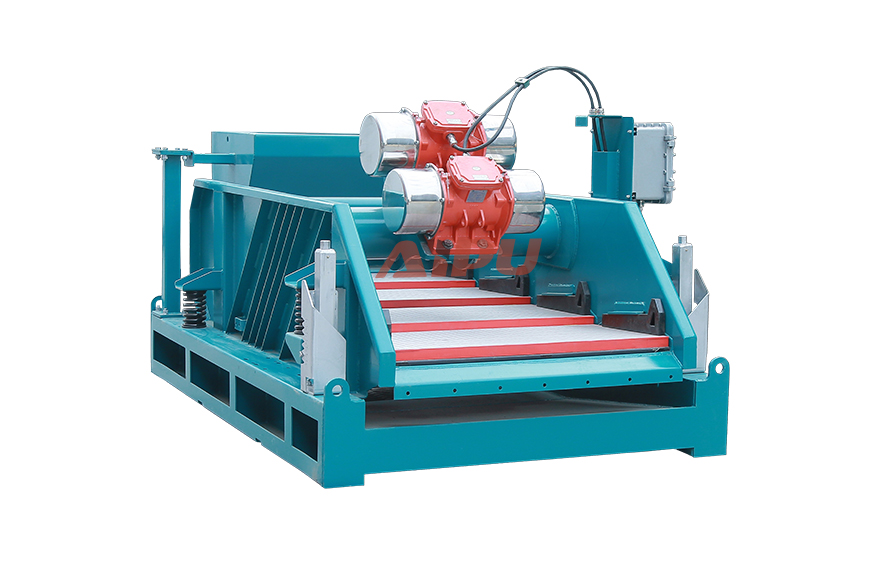

Shale shaker is used to separate drilling cuttings for first phase cleaning in a whole solids control system. AIPU shakers are mainly used for onshore oil and gas drilling, as well as geothermal drilling, water drilling, HDD, and coal bed methane operations.
We supply various options of shale shaker to meet unique client's demand, including linear motion shaker, double deck shaker, dual tandem shaker, and dual motion shale shaker. For some models, AIPU offers both stainless steel material screen and composite material screen options.
Shale shaker is super important in the whole solids control system. AIPU shale shakers are designed for easy operation and maintenance with user-friendly interfaces and clear instructions.
View Specifications
Hunter Series Shale Shakers - Multiple models for different capacity requirements
| Model | Hunter-MG3 | Hunter-MG4 | Hunter-MG5 | Hunter-Mini | Hunter-MG4V |
|---|---|---|---|---|---|
| Capacity | 120m³/h | 140m³/h | 180m³/h | 50m³/h | 140m³/h |
| Screen Area | 2m² | 2.7m² | 3.4m² | 1.35m² | 2.7m² |
| Screen No | 3 | 4 | 5 | 2 | 4 |
| Motor Power | 2×1.5kW | 2×1.72kW | 2×1.94kW | 2×0.75kW | 2×1.72kW |
| Deck Angle | -1 to +5° | -1 to +5° | -1 to +5° | 0° | -1 to +5° |
Note: AIPU also provides other models such as MG5V, MG4D, MG4T, etc., with processing capacity up to 420m³/h.
Why choose AIPU Shale Shakers for your drilling operations
Deck angle can be adjusted from -1° to +5° to optimize separation efficiency based on drilling conditions.
Quick-change screen design minimizes downtime during maintenance and screen replacement.
Fewer wear parts and simple design significantly reduce maintenance requirements and operational costs.
Premium raw materials and heat treatment of the entire shaker basket ensure durability and longevity.
Special coatings and stainless steel fasters provide excellent resistance to harsh drilling environments.
Tailored solutions to meet specific project requirements and operational conditions.
Advanced technology for optimal performance in varying drilling conditions

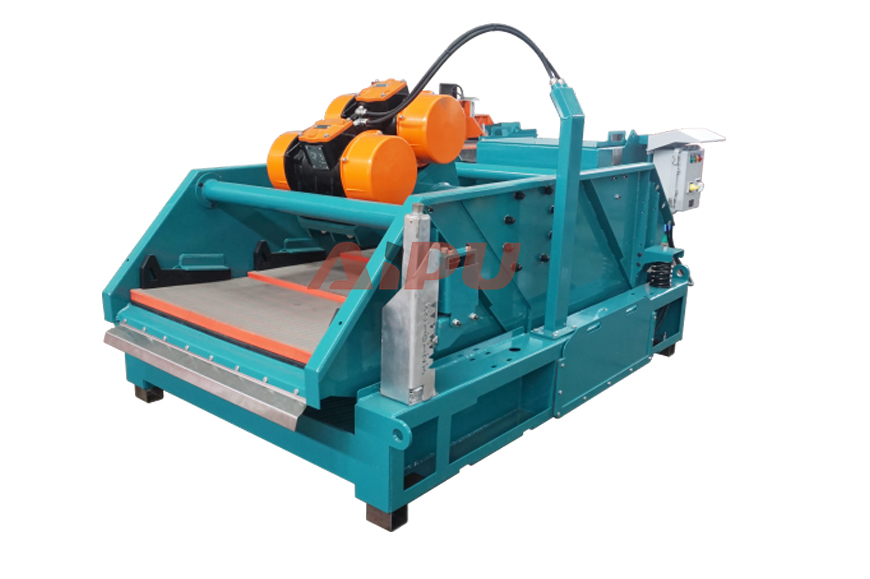

The Hunter-MGD shaker's motors have been replaced with special motors that allow the shaker to be easily switched between vibration modes during operation, adapting the vibration pattern to actual drilling conditions for optimal use.
Only 2 motors are needed to achieve the dual motion function. This is an internationally advanced design concept that is very popular with many customers, especially in Europe and the Middle East.
20 years of excellence in solids control solutions worldwide
Trusted by industry leaders worldwide
Committed to quality and international standards
Get detailed pricing and technical specifications for your project
