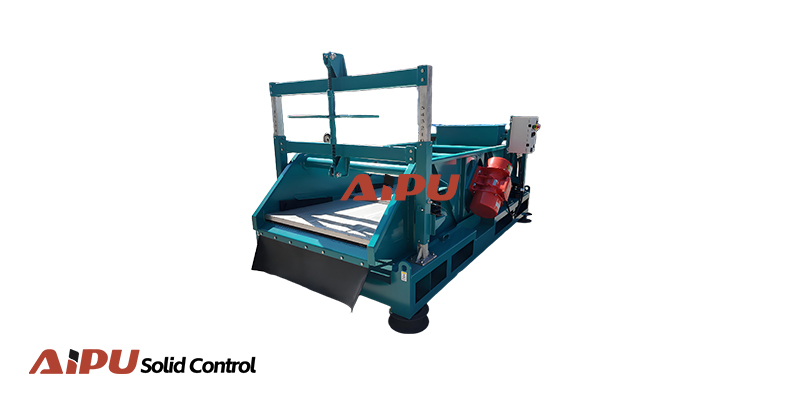

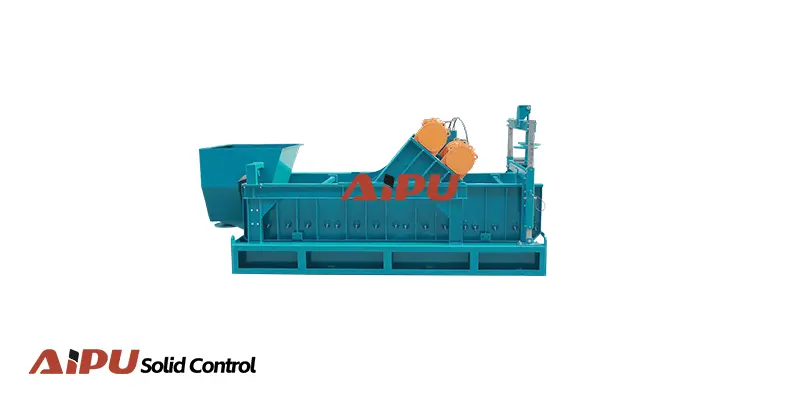

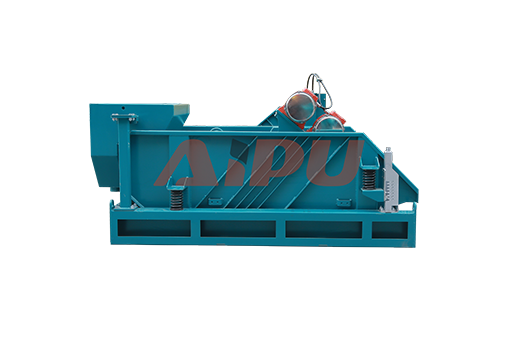

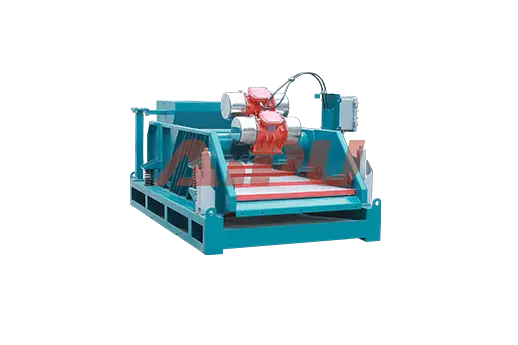

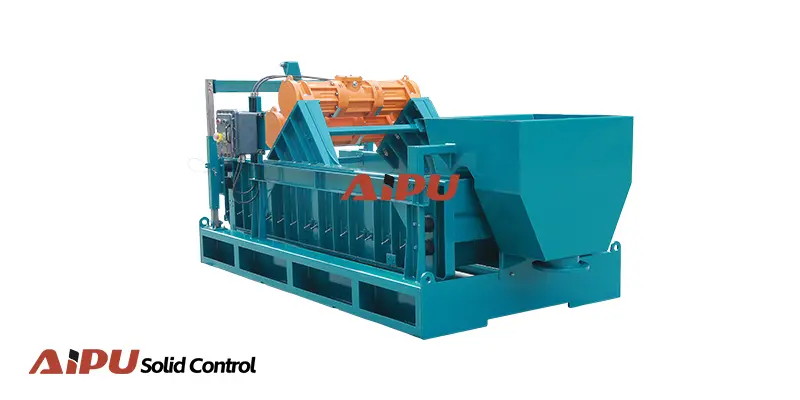

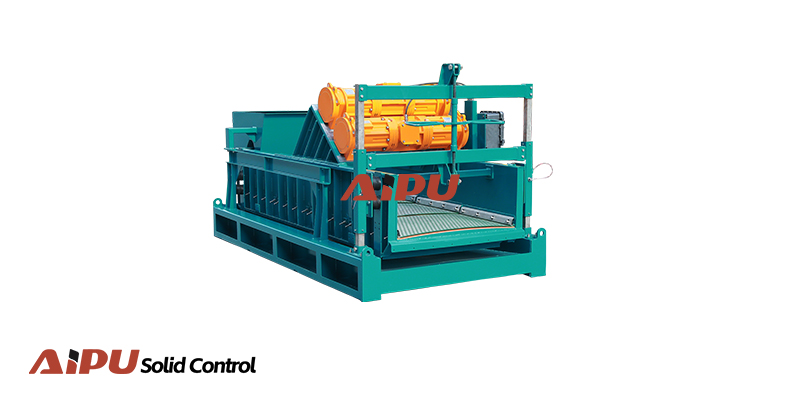

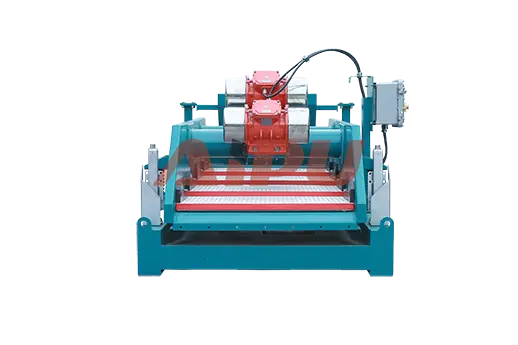

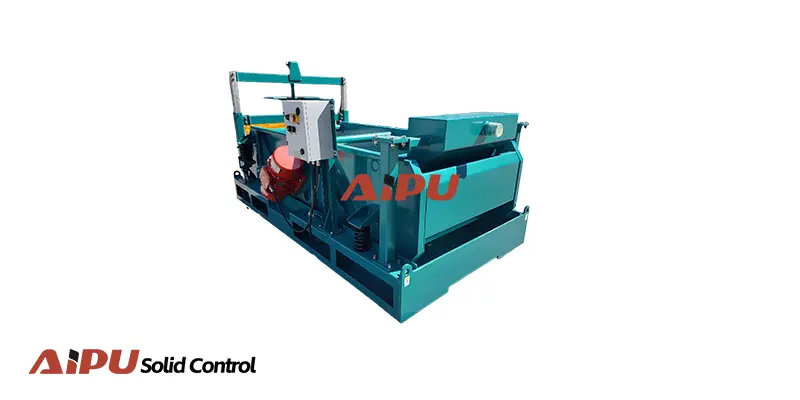

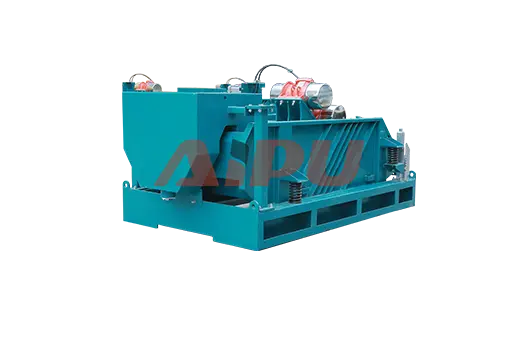

Shale Shaker
what is Shale Shaker?
Shale shaker is used to separate drilling cuttings for first phase cleaning in a whole solids control system. Shale shak...
what is Shale Shaker?
Shale shaker is used to separate drilling cuttings for first phase cleaning in a whole solids control system. Shale shak...

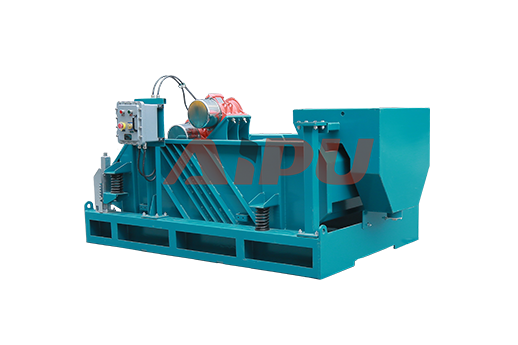

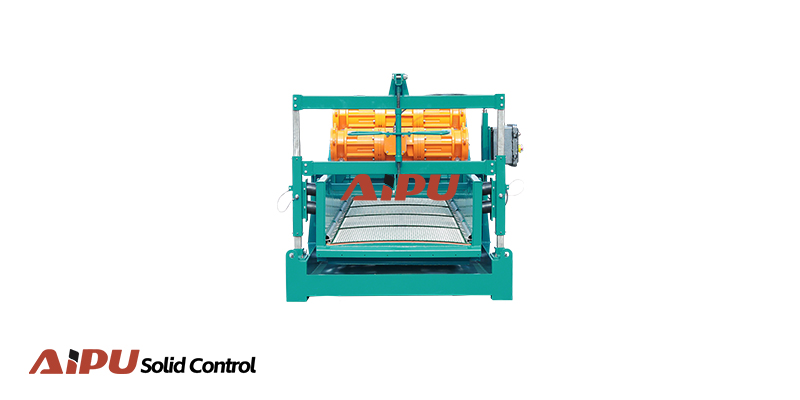

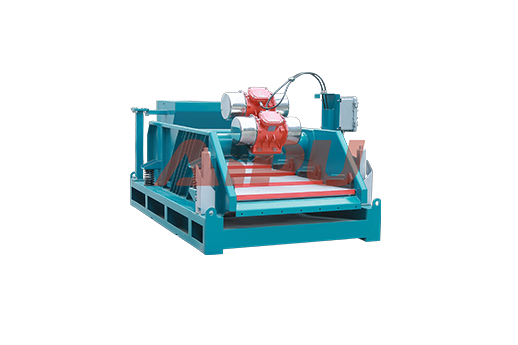

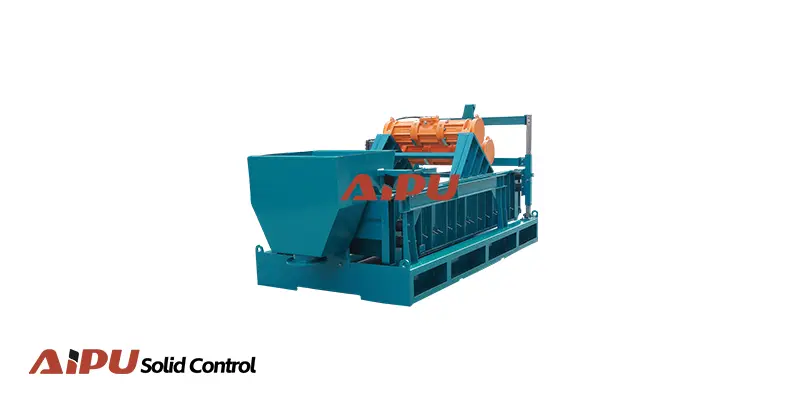

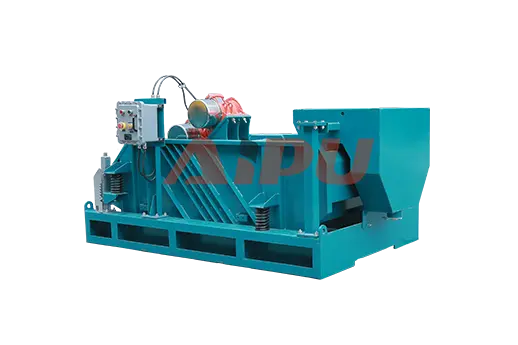

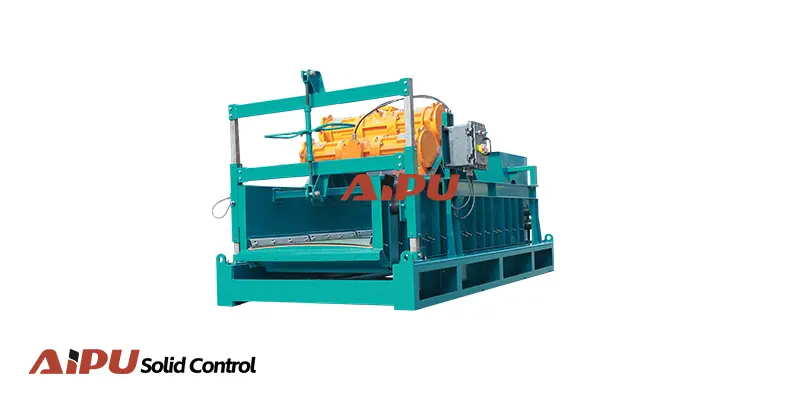

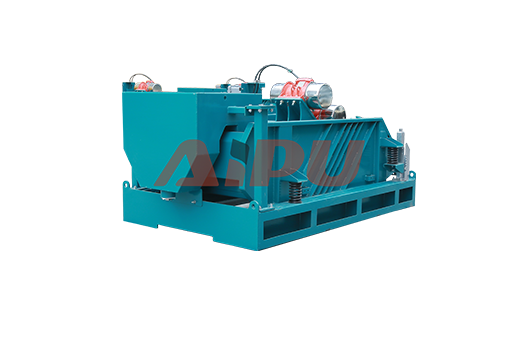

Shale shaker is components of solids control equipment. AIPU shakers in mainly used for onshore oil and gas drilling, as well as geothermal drilling, water drilling, HDD, and coal bed methan. We supply various options of shale shaker to meet unique client’s demand, including linear motion shaker, double deck shaker, dual tandem shaker, and dual motion shale shaker. For some model of shakers, AIPU supply both stainless steel material screen and composite material screen for the option.
Shale shaker is super important in the whole solids control system. AIPU shale shakers are designed for easy operation and maintenance. With user-friendly interfaces and clear instructions, operators can quickly learn how to operate these shakers without any difficulties. Additionally, their simple design and fewer wearing parts make maintenance a breeze. This not only saves time but also reduces maintenance costs, ensuring that the drilling operation runs smoothly without any interruptions.
| Model | Hunter-MG3 | Hunter-MG4 | Hunter-MG5 | Hunter-Mini | Hunter-MG4V | Hunter-MG5V | Hunter-MG4D | Hunter-MG4T |
|---|---|---|---|---|---|---|---|---|
| Capacity | 120m³/h | 140m³/h | 180m³/h | 50m³/h | 120m³/h | 120m³/h | 280m³/h | 420m³/h |
| Screen Area | 2m² | 2.7m² | 3.8m² | 1.35m² | 2.7m² | 2.8m² | 5.4m² | 8.1m² |
| Screen No | 3 | 4 | 5 | 2 | 4 | 5 | 8 | 12 |
| Motor Power | 2×1.5 | 2×1.72 | 2×1.94 | 2×0.75 | 2×1.72 | 2×1.94 | 2×2×1.72 | 3×2×1.72 |
| Deck Angle | -1 to +5° | -1 to +5° | -1 to +5° | 0° | -1 to +5° | -1 to +5° | -1 to +5° | -1 to +5° |
To meet the demands of the international market and address the practical needs of our users, Aipu offers flexible configurations. The main optional parameter items are as follows:
As the top solid control manufacturer in China, Aipu Solid Control always puts customer needs first. We firmly believe that technology can create the future, but service is the bridge that turns technical strength into real value for customers.Aipu Control insists on providing high-quality products and services. And it is an honor to be your ideal global supplier of drilling fluid treatment equipment. Looking forward to serving you.
We are committed to delivering:
