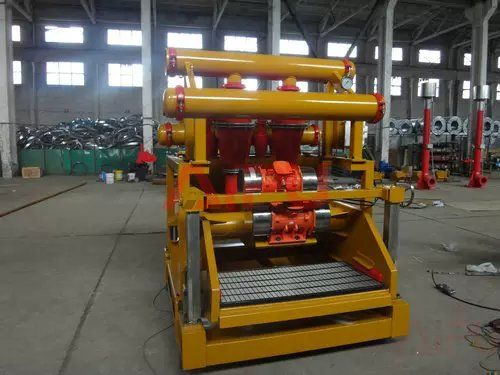

Mud cleaner is the second class and the third class solids control equipment which is the newest type to treat the drilling fluid. At the same time, mud cleaner has the higher cleaning function compared with separated desander and desilter. In addition to the reasonable design process, it equals another shale shaker. The hydrocyclones make the primary separation with underflow directed onto the shaker vibrating screen. The Aipu mud cleaners have been proved effective in lowering both drilling fluids and disposal costs.
Drilling mud cleaner features:
1. Polyurethane (PU) Material, high-chromium cast iron or ceramic for desander and desilter cones.
2. Desander cones can be installed between one and three 10"desander cones, each cone can process 500GPM and makes a separation between 45 and 75 microns.
3. Desilter cones can be installed between eight and twenty 4"or 5"desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 microns.
4. Mechanical deck adjustable while operation for reliable performance.
5. Compact design with small footprint, with top feed and weir feed two options.
6. Hook-strip shaker screen for fast screens changing
Welcome to Aipu machinery to get best solution on solids control system and drilling waste.
