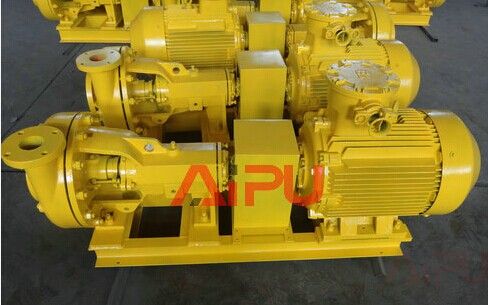

Centrifugal pump is used for transferring drilling mud. It can be used as feeding pump for desander, desilter, or used as mixing pump for jet mud mixer. Also it can be used as trip pump, and supercharging pump for rig mud pump.
Working principle of centrifugal pump
The sand pump is the most used pump type in the word. The principle is simple, well-decribled and throughly tested, and the pump is robust, effective and relatively inexpensive to produce. The sand pumps creates an increase in pressure by transferring mechanical energy from the motor to the fluid through the rotating impeller. The fluid flows from the inlet to the impeller centre and out along its blades. The centrifugal force hereby increase the fluid velocity and consequently aslo the kinetic energy is transformed to pressure.
Advantage of Aipu centrifugal pump
1. The much plumper housing is for extra power and extended service life. Often the concentric design housing removes turbulence and cavitations inside pump, and it also reduces the actual radial load on the bearings.
2. The open vane impeller is designed to reduce disorder, lower radial and press loads, and provides a simple flow of fluid with the pump.
3. The tube shaft with a large height ensures the heavy duty effectiveness with minimal shaft defection. The shaft sleeve in addition to mechanical seal can be substituted without removing the canal from the pump.
4. Aipu centrifugal pump adopts kinetic type seal which is manufactured by the best material. This type seal delivers excellent performance with superior style. Our seal distributes push torque over 10 commute tabs, which greatly minimizes stress on the outer retainer-like.
Welcome to Aipu solids control to obtain more information for solids control equipment.
