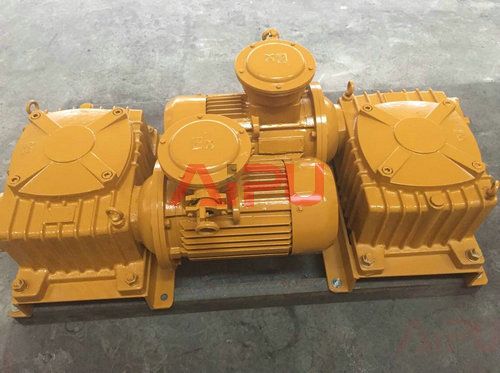

Mud agitator is an important solids control equipment for Drilling mud purification system. The mud agitator is used to mix the mud uniformly and reliably. It is furnished with an up-to-date gear reducer featured by high driving efficiency, compact design, low noise level, reliable quality and easier maintenance.
The function of mud agitator is to maintain the fluid performance stable. Therefore, the drilling liquid stirrer impeller discharge must be in the tank so that the suspended solid upward speed greater than the speed of settling down, so the stirrer impeller diameter and speed given working volume is certain. Stirrer to stir the drilling fluid circulation within the working volume of the time called cycle time.
According to the information from abroad, the cycle time is 30~90s. In the mud solid control system, drilling fluid tank placed drilling fluid shale shaker mud solid control need to sediment, the cycle time is maximum, and other drilling liquid storage tank and pump tank should take the smallest value, in order to ensure the performance of drilling fluid stability. Usually the cycle time set the number of 60s as the basis of the number of mud agitator.
Mud agitator Product Features: 1. Smooth driving and low noise level. 2. Good radiation and low temperature rise. 3. Good sealing with no leakage. 4. Large driving power and powerful agitation. 5. Helical-bevel gearbox. 6. Explosion-proof electric motor. 8. Power available ranging from 2.2 to 22KW. 9. Compact, quiet, smooth and easy to maintain.
Shaanxi Aipu Machinery Manufacture Co., Ltd produce solids control equipment which include the shale shaker, desilter, desander, mud cleaner and so on widely used in many drilling industry, recycling industry.
