Jet mud mixer is a kind of solids control equipment. It is mainly used to finish drilling fluids mixing and adjust drilling fluids property. Jet mud mixer is widely used in many industries, only need to mix materials and liquids, the jet mud mixer will be a good choice for materials mixing. Compared with traditional methods, jet mud mixer mixing effect will be more even and smooth.
One set of regular jet mud mixer must meet the flowing property.
1. Under condition of normal operating, materials should be mixed evenly, no bubble phenomenon in the port.
2. The jet mixing device requires that the hydraulic loss to be reduced as much as possible.
3. The jet mixing device should have a moderate pressure at the outlet of the liquid outlet.
4. The internal structure of the mixer for streamline smoothly, cannot produce a vortex in the inner boundary, cannot produce cavitation and cavitation phenomenon.
5. Butterfly valve of mixer can be operated flexibly, reliable sealing.
6. Platform of feeding hopper should be firm and reliable.
7. The connection point of pipes should be sealed reliably, no leakage phenomenon.
8. Jet mixing device three through pipes to set preventer valve to prevent frostbite caused by the low temperature in winter.

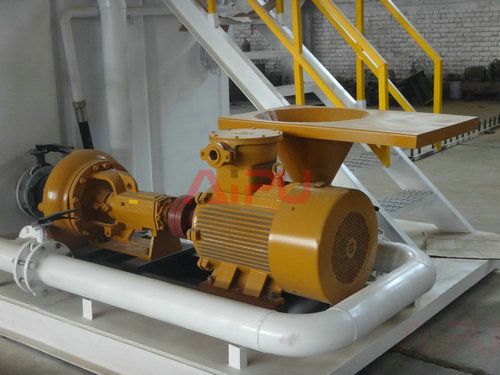

Aipu machinery SLH series mixing device feature and advantage
1. Single jet mixing device is composed of a pump and a jet mixing hopper by manifold and valve group connecting to install on a base to form the jet mixing device, double jet mud mixer device is composed of two pumps and two jet mixing hoppers.
2. The jet funnel and pump can be combined installation together also can be split, pump and valve group is connected with the manifold.
3. Through the jet mixing device can effectively change the drilling fluid density, viscosity, water loss and so on, at the same time to better enhance the material dispersion effect, and improve the mixing liquid pressure head, so that the material can be fully cycled mixed in the tank.
