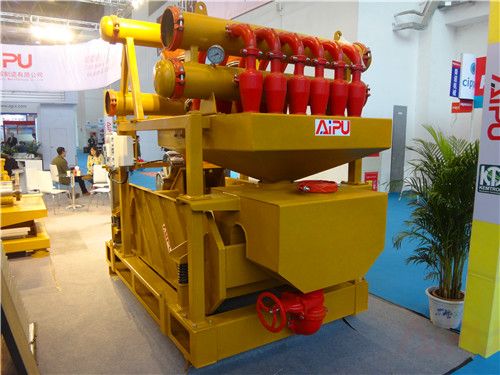

A mud cleaner is a combination of desanders and/or desilters to remove drilled solids from mud.
The purpose of the mud cleaner is to remove drilled solids larger than barite. Solids larger than 74-105 micrometres can be removed by the mud cleaner before the viscosity builds up. Mud cleaner can effectively control weighted drilling fluid solid content. Prevent differential pressure sticking, adhesion stuck drill accident, reduce the drill string and the filter cake thichness on bond issues.
Mud cleaner features and benefits
1. Desander and desilter and shale shaker 3 in one unit mud cleaner for compact footprint.
2. Polyurethane material hydrocyclone for long life
3. Removable hydrocyclone assembly for adjust to be a shale shaker.
4. Patent shaker deck angle adjustable while working, mechanical deck angle adjustment with reliable performance.
5. Patent tighten rubber sealing for mud cleaner shaker deck and screen for fine screen
6. Shaker bottom deck made from Stainless Steel for long service life.
7. Heat treatment on complete shaker deck for High G force operation.
8. Pretensioned shaker screen for fast screen replacement.
9. Famous brand vibration motors : IEC Ex, ATEX and UL Certified mud cleaner
Some notes for how to use mud cleaner
1. The use of the polyurethane cyclone temperature greater than 80 ℃, the lowest not less than 30 ℃.
2. The cyclone feeding solid particles in the biggest should be less than 1/10 of the feed mouth narrow edge width, such as more coarse particle should screen out in advance.
3. Often visited sand pump feed, equipment, hydrocyclone grit mouth is abnormal, and so on and so forth.
4. Clean the vortex tube after the usage and remove the bottom block sand.
5. Cleaning sieve and timely replacement of the damaged screen.
6. The eccentric shaft bearing lubrication and maintenance once a week.
