Principle of linear motion shale shaker.

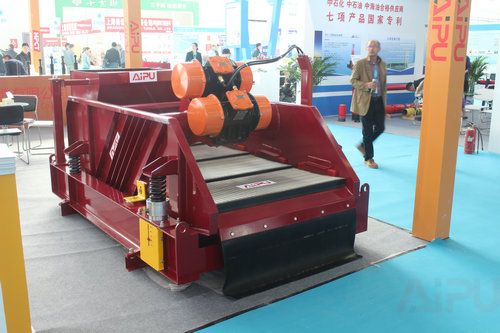

Linear motion shale shaker is made of hydraulic lift device, vibration motor, explosion-proof switch, foundation, logging tank and screen. It uses double vibration motor, when the two sets vibration motor do the synchronization and contrarotation, the exciting force is produced by eccentric block is cancelled out with direction of parallel with motor shaft line and fold a resultant force with the direction of perpendicular to motor shaft. So the motion of screen machine is linear.
There is a dip in the sifter where is the two motor shaft relatively, in the resultant force of exciting force and gravity the material is throw and do linear motion movement to reach the aim of screening and grading. Usually the modern shale shakers are high speed, linear, fine mesh, multi-layer shale shaker. It plays the important roles in solid phase control system.
Linear motion shale shaker features
1. High vibration intensity.
2. Large screen surface area.
3. Adjustable discharge angle during drilling.
4. Simple compact structure.
5. Reliable and great performance at a competitive price.
