Oilfield cuttings dryer is the drilling cutting dryer used to process drilling waste with oil or manage oil sludge. Ainu produce the high quality vertical dill cutting dryer can be widely used as in many applications. Please find below information for more reference
Drilling cutting dryer designed to process drilling waste with cuttings. The disposal out of cutting dryer oil content by weight is about 5%.
In general view, we approach following four R’s
Recycle-recycle the useful material for reuse
Recover-recover the fluid property
Reduce-reduce the cost and waste disposal
Reuse-reuse the valuable products processed by cutting dryer
Aipu cuttings dryer holding high efficiency separation on drilling fluid and it will minimize drilling cuttings content in drilling fluids. The cutting dryer decrease disposal percentage benefit much on “0” disposal application. Separate drilling mud recycled by solids control system effectively. Recycle the lost mud caused by equipment failure, etc. The common spare parts are easy to be replaced. The wolfram carbide alloy knives on cones are changeable also minimize the whole device failure

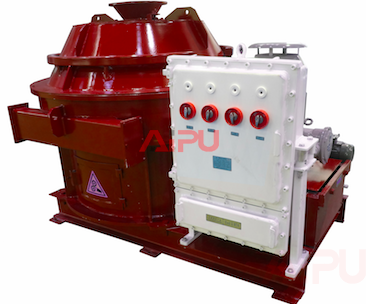

The Vertical Cuttings Dryer uses centrifugal force to dry drilled solids in oil or synthetic base fluids. A stainless steel screen bowl traps “wet” solids and accelerates them up 900RPM with G force to 420G.
Liquid is forced to pass through the screen bowl openings, while “dry” solids are extracted by the angled flights attached to the cone, which rotate slightly slower than the bowl. Tungsten carbide protects the flights from abrasive solids and ensures long operational life. This aids in maintaining a constant gap between the scroll and screen bowl, which is crucial for proper operation.
Please review our site for standard specification of cuttings dryer. And we welcome any question or interest on it.
