Shale shaker vibration mode

Shale shaker vibration mode including linear motion, circular mode, elliptical mode, BEM, even we can achieve dual motion performance by simple swift on 3 motors of shaker.

To achieve any type of vibration mode we request different motor configuration. If we request linear motion shaker, then two same sized motors are requested to be mounted. Thus under mutual function of motor centrifugal force  the vibration tracking will be a straight line

Shale shaker vibration mode

To achieve balanced elliptical motion shaker, there should be one larger motor and one smaller motor. So, under different force generated from motors the general tacking of material will be a balanced elliptical shape.

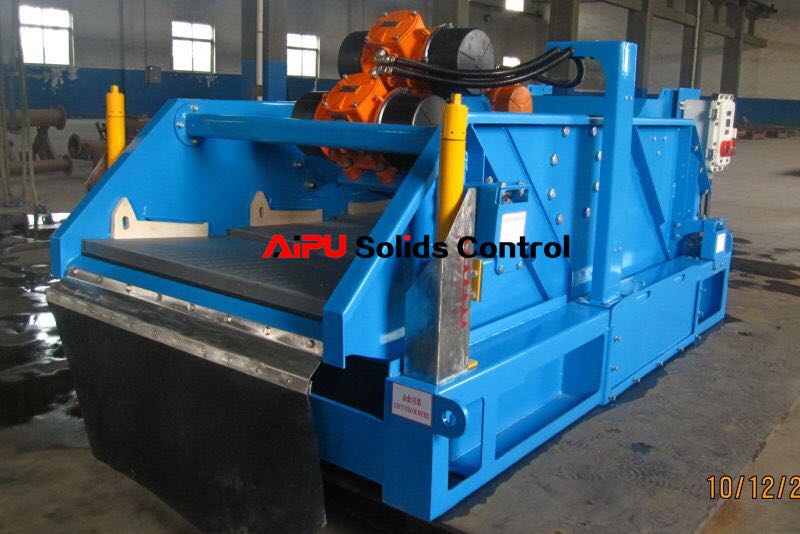

Proud to say, we are also able to produce high quality dual motion shaker. On such shakers, there are 3 motors. Among 3 motors, 1 is different with other 2. We can select linear motion by turning off smaller motor, if we select BEM shaker, we can turn off one set of bigger motor. This will be simply finalized by switch button.

You are welcome to inquire us with any question or demand. Aipu solids control will certainly solve your problem soon.
