Why Shale Shaker Is the First Stage of Solids Control

In the demanding environment of drilling operations, managing the mixture of drilling fluid and drilled cuttings is a critical and continuous challenge. The efficiency of the entire solids control system hinges on the first and most crucial step: the initial removal of large, abrasive solids from the drilling mud. This primary defense is the shale shaker. Acting as the frontline of the solids control process, its performance directly dictates the effectiveness and workload of all downstream equipment. Without a properly functioning shale shaker, subsequent stages like desanders, desilters, and centrifuges would be quickly overwhelmed, leading to rapid equipment wear, increased chemical costs, and significant downtime. The principle is simple yet fundamental; by removing the largest solids first, the shale shaker protects the entire system, making it the indispensable and non-negotiable first stage of any effective solids control program. Its role is not just about separation; it is about preserving the integrity and economic viability of the entire drilling fluid system.

The Critical Role of Primary Solids Removal

Drilling fluid, or mud, is the lifeblood of a drilling operation. It cools the drill bit, carries cuttings to the surface, and stabilizes the wellbore. As it returns to the surface, it brings with it a mixture of rock fragments, or "cuttings," of various sizes. If these solids are not immediately removed, they begin a destructive cycle. They are recirculated downhole, where they break down into smaller, more numerous particles. These finer particles increase the mud's density and viscosity, making it harder to pump and reducing its efficiency. Abrasive solids also accelerate the wear on pumps, drill bits, and other valuable equipment. The primary objective of the first stage of solids control is to intercept these large solids immediately upon their return to the surface, preventing this cycle of degradation before it can even begin.

How a Shale Shaker Works

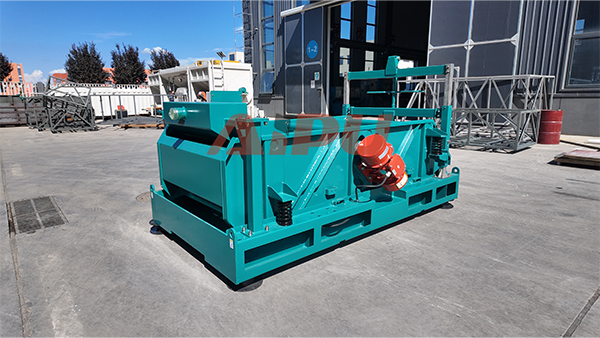

A shale shaker is a vibrating sieve. The unprocessed drilling mud is fed onto a screen bed, which is set at a slight incline. Powerful vibrators, either linear or elliptical in motion, agitate the screen. This vigorous vibration forces the liquid drilling mud and smaller particles to pass through the screen openings (known as the "unders"), which is then collected for further processing. The larger, undesirable drilled cuttings are conveyed along the screen surface and discharged off the end into a separate collection bin. The key to its effectiveness lies in the selection of the screen mesh. The mesh size must be fine enough to capture the maximum amount of solids while still allowing the valuable liquid mud to flow through efficiently. Modern shale shakers often feature multiple decks and advanced motion systems to handle high flow rates and achieve superior separation performance.

The Domino Effect on Downstream Equipment

Placing the shale shaker first is a logical and practical necessity for protecting the rest of the solids control train. Consider the equipment that follows. Desanders and desilters, which are hydrocyclones, are designed to remove fine sand and silt-sized particles. If large cuttings were to enter these units, they would cause rapid clogging and erosion, rendering them ineffective and requiring frequent, costly maintenance. Similarly, the drilling mud centrifuge, which is the final stage for removing ultra-fine particles, is an extremely precise and expensive piece of machinery. Feeding it mud laden with coarse solids would quickly lead to mechanical failure and exorbitant repair bills. By removing up to 80% of the total solids load at the shaker stage, the downstream equipment is allowed to operate within its designed parameters, focusing on the specific particle sizes they are meant to handle.

Economic and Operational Impacts

The strategic placement of the shale shaker as the first stage has profound economic implications. Efficient primary separation drastically reduces the volume of drilling fluid that is lost with the discarded solids. Since drilling mud is a complex and expensive chemical mixture, minimizing its loss is a direct cost savings. Furthermore, by maintaining the mud in its ideal state—clean and at the proper weight and viscosity—the shaker contributes to faster drilling rates (ROP). A clean mud system also reduces the risk of downhole problems such as stuck pipe or wellbore instability. The cost of a screen replacement for a shale shaker is negligible compared to the cost of repairing a centrifuge or dealing with a well control incident caused by poor mud conditions.

Conclusion: The Unquestionable First Line of Defense

In the hierarchy of solids control, the shale shaker's position is not arbitrary; it is foundational. Its function is the most physically demanding, handling the entire flow of drilling mud and the full spectrum of cuttings sizes. Its success is the prerequisite for the success of every subsequent stage. Investing in a high-quality shale shaker with the correct screen configuration is one of the most impactful decisions a drilling operation can make. It is the workhorse that safeguards the entire fluid system, protects capital-intensive equipment, and ensures that the drilling process remains efficient, safe, and cost-effective. For these reasons, the shale shaker will always be, unequivocally, the first and most critical stage of solids control.
