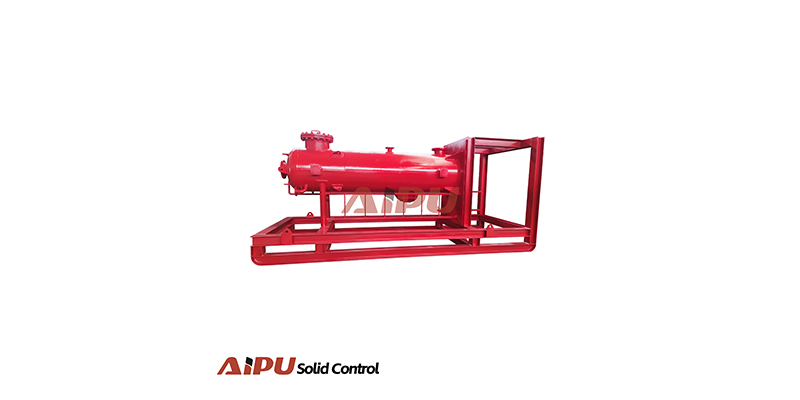

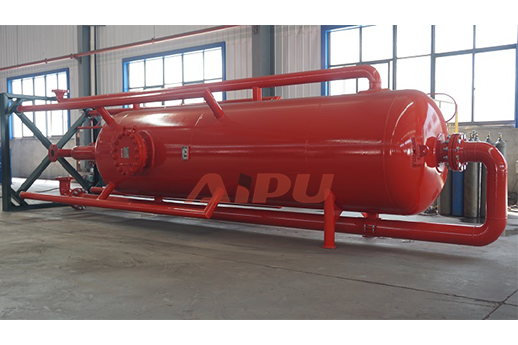

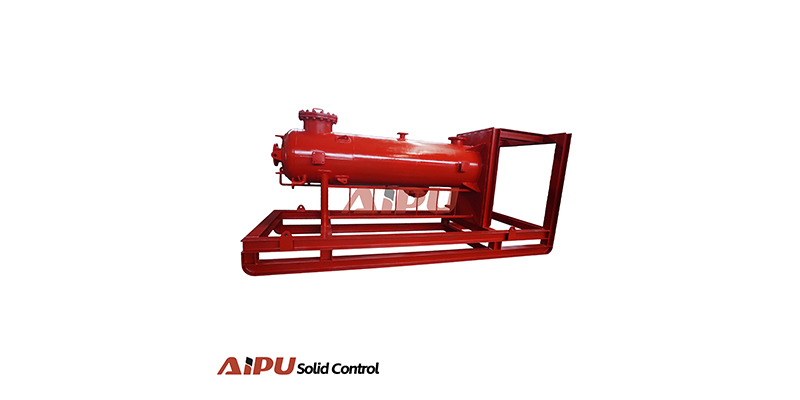

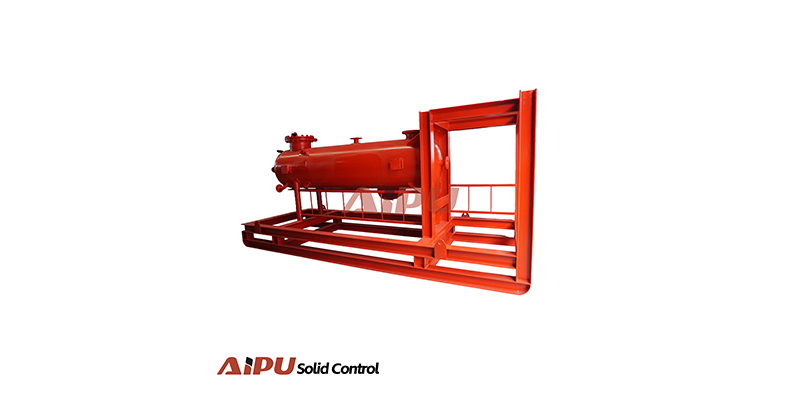

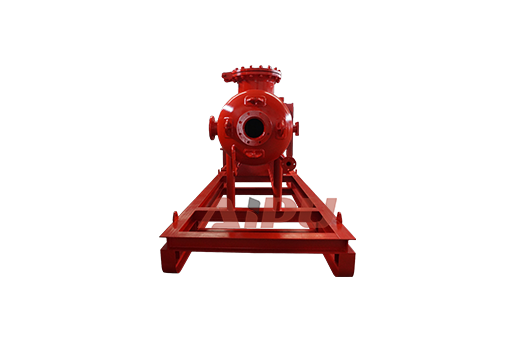

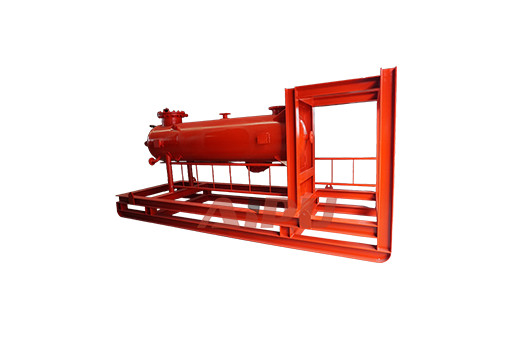

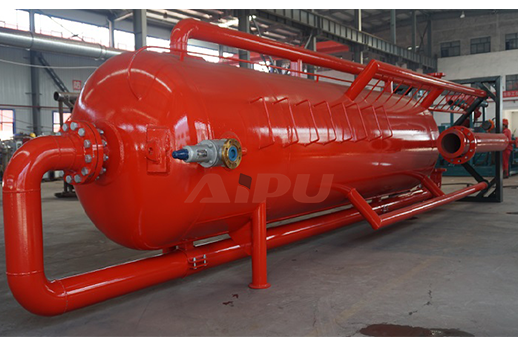

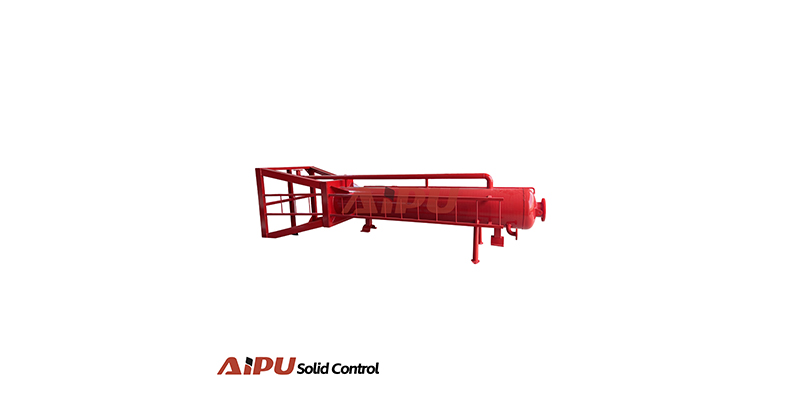

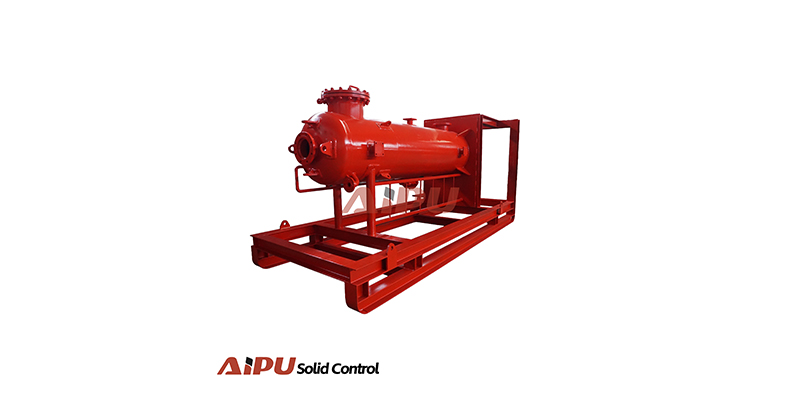

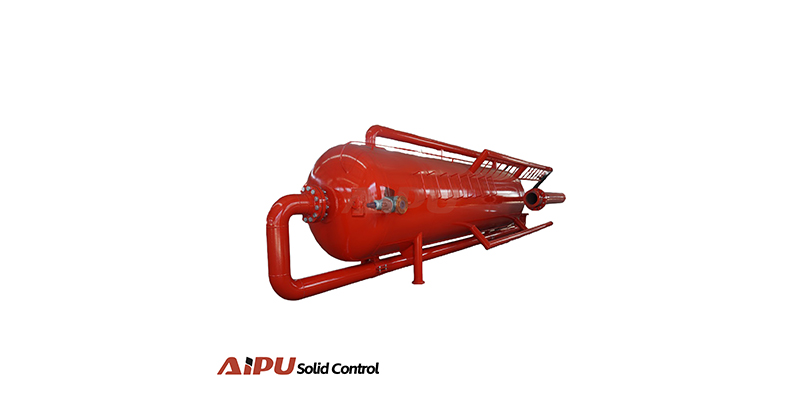

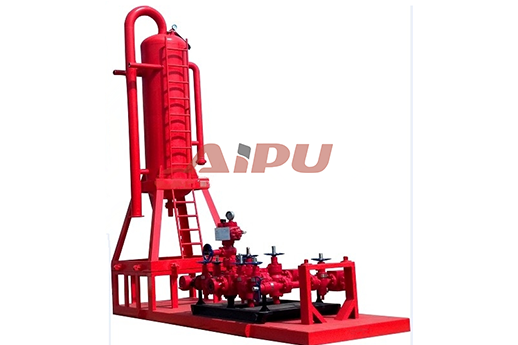

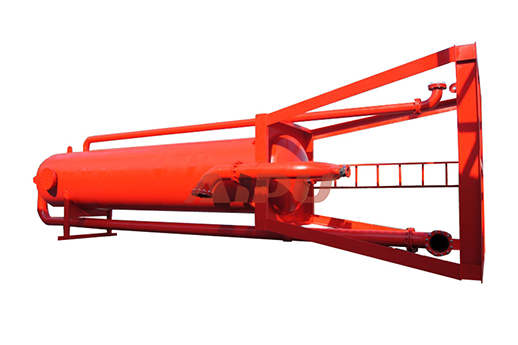

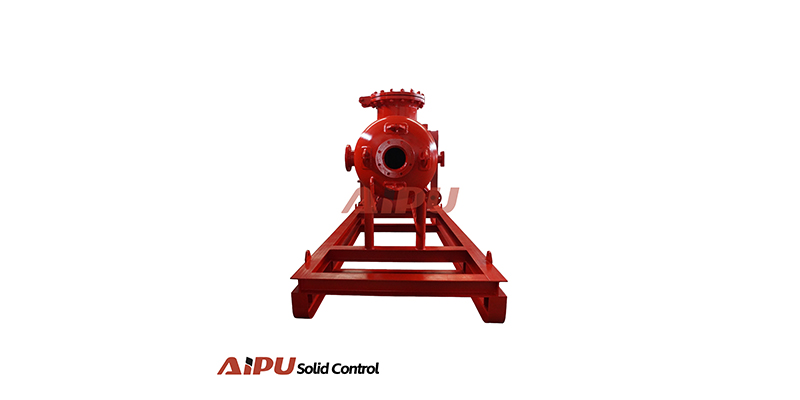

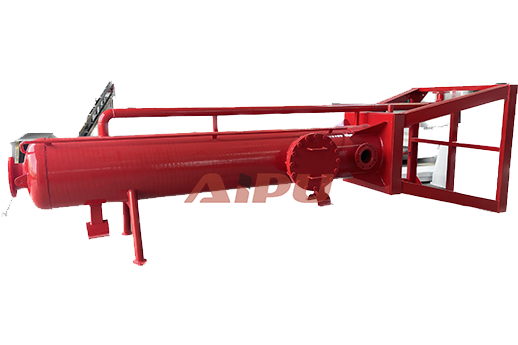

Mud Gas Separator
what is Mud Gas Separator?
Poor boy degasser is a equipment to treat the gas invade mud. If there is a “KICK” situation, this vessel separates th...
what is Mud Gas Separator?
Poor boy degasser is a equipment to treat the gas invade mud. If there is a “KICK” situation, this vessel separates th...
Common carbon steel or H2S resistant steel for option
Heavy-duty marine anti-corrosion painting with 3 layers
Unique design ensures constant liquid level in the separator and solves the problem of sand accumulation inside the tank
The combination of multiple separation technologies such as centrifugal separation, physical impact separation,and vacuum separation ensures the separation effect of gases
Buffer devices are installed at the corners of the liquid supply pipe and replaceable impact resistant baffles are added. Regular inspection and replacement can be carried out according to wear conditions to extend the service life
The sulfur resistant mud gas separator is manufactured and processed entirely with special materials, which can completely prevent damage to the equipment caused by hydrogen sulfide in the gas.
| Model | APMGS800 | APMGS1000 | APMGS1200 | APMGS1400 |
|---|---|---|---|---|
| Vessel Dia. | 32" | 40" | 48" | 52" |
| Capacity | 200~260m³/h | 240~300m³/h | 280~360m³/h | 320~420m³/h |
| Inlet Dia. | 5" | 5" | 5" | 5" |
| Discharge Line Dia. | 8" | 8" | 10" | 12" |
| Vent Line | 8" | 8" | 8" | 8" |
Customizable Options for APMGS Mud Gas Separator
Facing the international market, based on the actual needs of users, AIPU provides flexible configuration for customers. The following are the main optional parameters:
Pressure Requirements – Customized
Material – Common carbon steel or H₂S resistant steel for option
Certification & Inspection – Pressure vessel, inspection certification and etc.
Surface Color
As the top solid control manufacturer in China, Aipu Solid Control always puts customer needs first. We firmly believe that technology can create the future, but service is the bridge that turns technical strength into real value for customers.Aipu Control insists on providing high-quality products and services. And it is an honor to be your ideal global supplier of drilling fluid treatment equipment. Looking forward to serving you.
