Mud Agitator
what is Mud Agitator?
Mud agitators are necessary equipment for drilling mud tanks to mix drilling fluid during oil drilling at the oilfield. ...
what is Mud Agitator?
Mud agitators are necessary equipment for drilling mud tanks to mix drilling fluid during oil drilling at the oilfield. ...

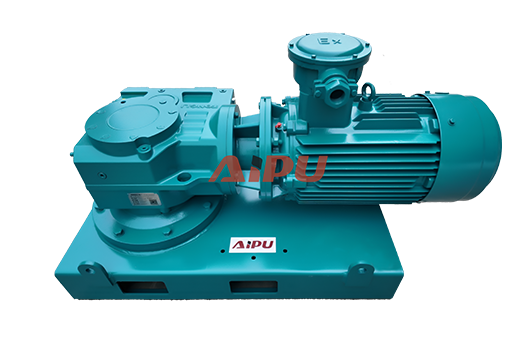

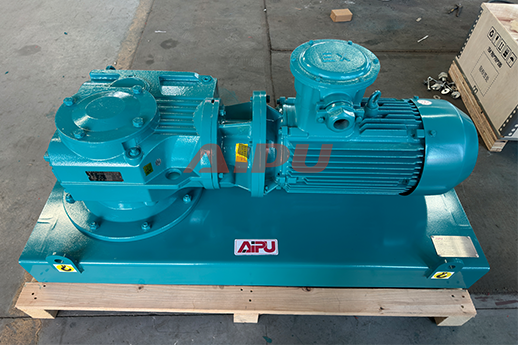

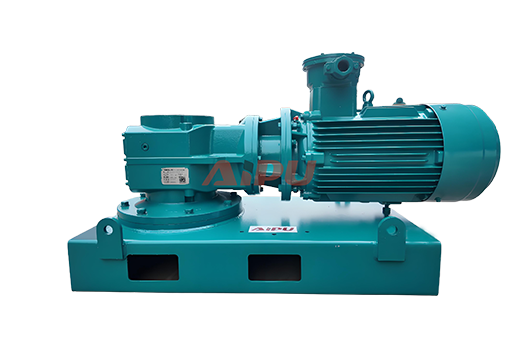

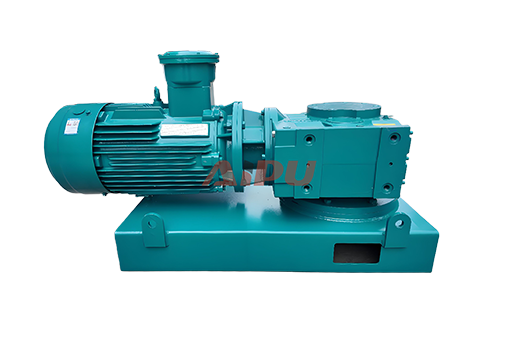

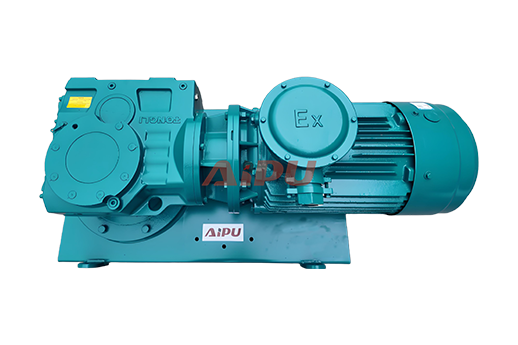

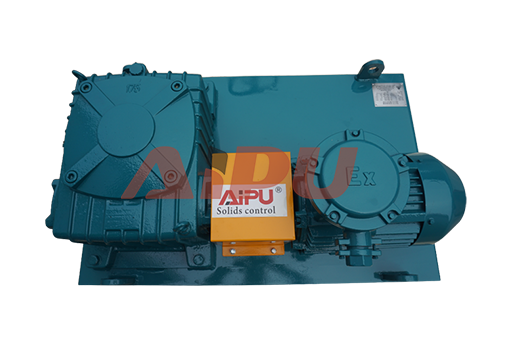

Drilling mud agitator also called mud tank agitator is driven by an explosion-proof motor coupled to a gearbox that drives the impeller & shaft. The impellers transform mechanical power into fluid circulation or agitation. The objective is to achieve a uniform suspension of all solids. Usually, we suggest one set agitator per 3 meters of the mud tank. Except for the shaker tank, almost every compartment requests agitator.
Based on the different gearbox type, there are helical bevel agitators and helical worm agitators for option. Some clients prefer a helical bevel gearbox agitator, that more stable working performance. While some customers like a helical worm one which are good performance and highly cost competitive. Both types are convenient working and less wearing parts. Also, it can be fitted with single or double vertical or inclined impellers.
For mud agitator, customized service can be achieved from AIPU, including shaft length, painting color, package, as well as special certificates like ATEX, IEC, and EAC for electric components. Our agitators are widely used for oil and gas drilling, geothermal drilling, and horizontal directional drilling.
| Model | APMA5.5 | APMA7.5 | APMA11 | APMA15 |
|---|---|---|---|---|
| Motor | 5.5KW(7.5hp) | 7.5KW(10hp) | 11KW(15hp) | 15KW(20hp) |
| Impeller Speed | 60/72RPM | 60/72RPM | 60/72RPM | 60/72RPM |
| Single Impeller | 850mm | 950mm | 1050mm | 1200mm |
| Dual Impeller | N/A | Up:800mm | Up:850mm | Up:950mm |
| Down:800mm | Down:850mm | Down:950mm | ||
| Ratio | 25:1 | 25:1 | 25:1 | 25:1 |
| Shaft Length | Depends on tank depth | |||
| Power System | 380V/50HZ,460V/60HZ (Customer built) | |||
| Remark | Explosion proof motor is available, shaft stabilizer is available | |||
Customizable Options for APMA Drilling Mud Agitator
Facing the international market, based on the actual needs of users, AIPU provides flexible configuration for customers. The following are the main optional parameters:
Electrical System - Customizable
Material - Common carbon steel or H₂S resistant steel
Certifications - ATEX, IEC, DGMS, UL etc. certificates are optional
Surface Color
Other Types & Configurations
Gear Types - Both worm gear and bevel gear types are available.
Installation Method - Can be classified into horizontal and vertical according to the installation method. Vertical agitators are suitable for special installation environments.
Shaft Stabilizer - Is available (as noted in the technical parameters table).
As the top solid control manufacturer in China, Aipu Solid Control always puts customer needs first. We firmly believe that technology can create the future, but service is the bridge that turns technical strength into real value for customers.Aipu Control insists on providing high-quality products and services. And it is an honor to be your ideal global supplier of drilling fluid treatment equipment. Looking forward to serving you.
