Mud Cleaner
what is Mud Cleaner?

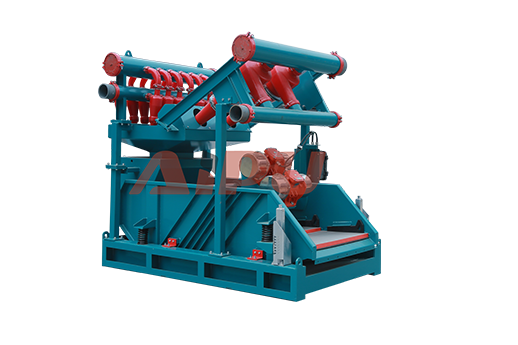

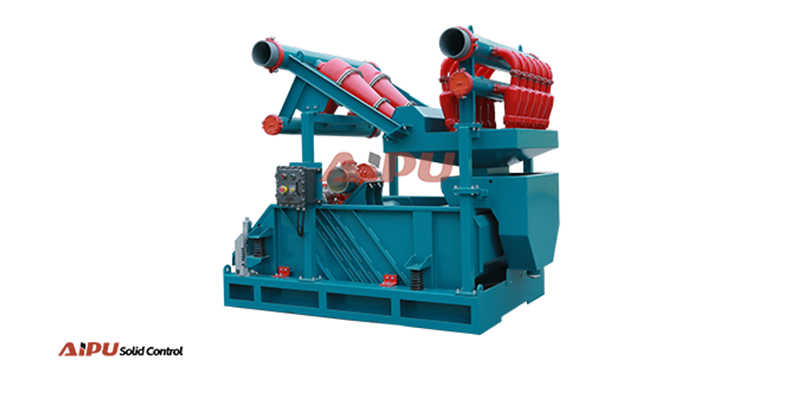

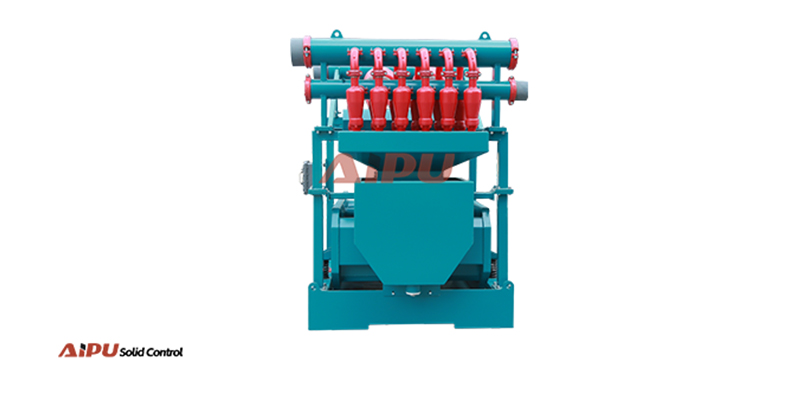

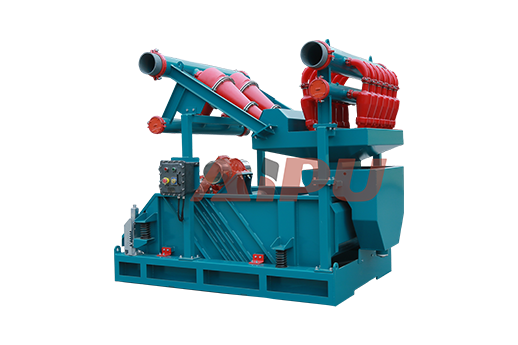

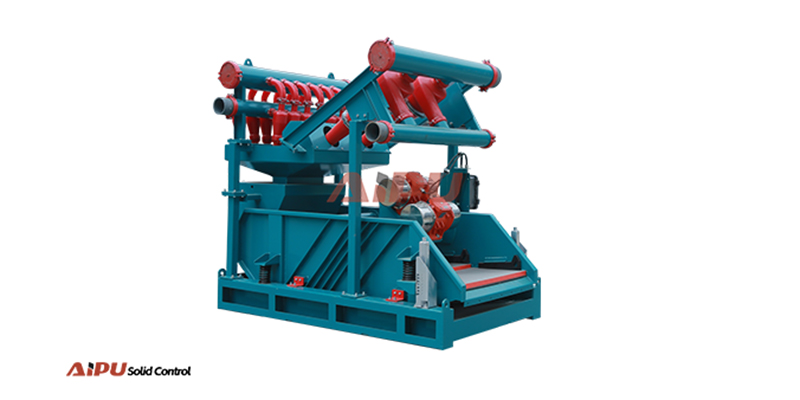

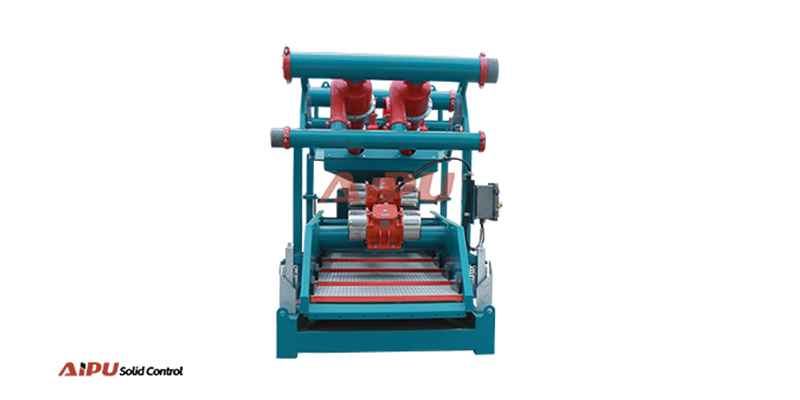

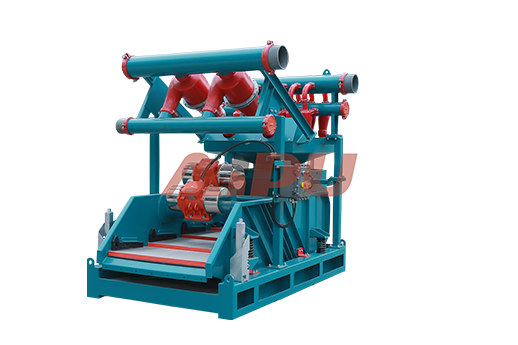

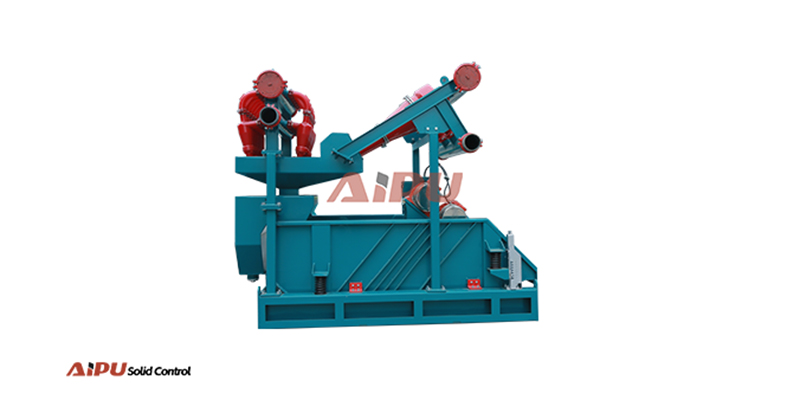

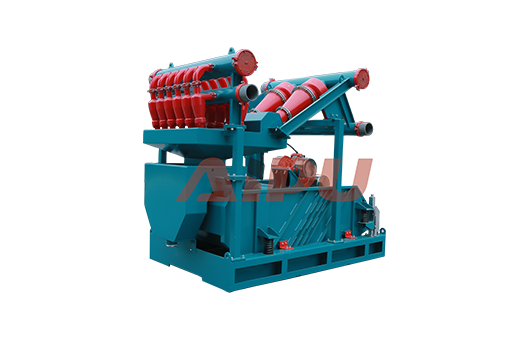

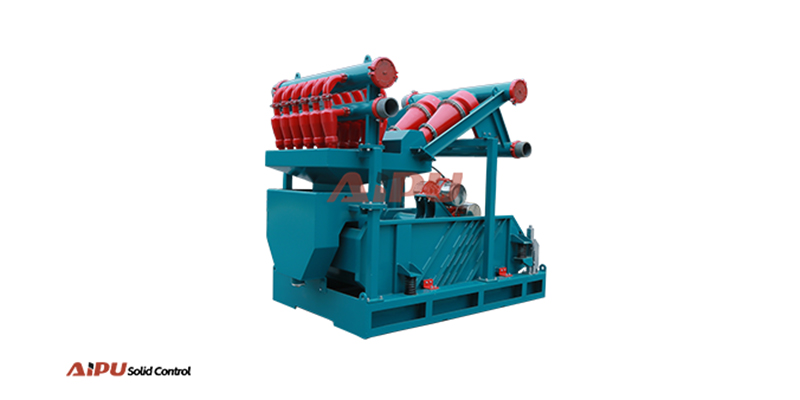

Mud cleaner is a combination of desander and desilter and mounted over a shale shaker with a fine mesh screen. A mud is ...
what is Mud Cleaner?
Mud cleaner is a combination of desander and desilter and mounted over a shale shaker with a fine mesh screen. A mud is ...
Mud cleaner achieve effective 2 nd and 3 rd phase solids control.Widely used in oil and gas drilling mud process.Great performance provides good condition for further centrifuge process. Decrease much cost on process or waste.
Our mud cleaner structure is compact, it occupy small space and the function is powerful. We can design customized cost-effective mud Cleaner for customers special needs. Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.
| Model | Hunter120 | Hunter120B | Hunter240 | Hunter240B | Hunter320 | Hunter320B | HunterM120 |
|---|---|---|---|---|---|---|---|
| Capacity | 120m³/h | 240m³/h | 320m³/h | 120m³/h | |||
| Desilter Cone | 4’’x8 | 4’’x12 | 4’’x12 | 4’’x8 | |||
| Desander Cone | 10’’x1 | 10’’x2 | 10’’x3 | 10’’x1 | |||
| Bottom Shaker | Hunter-D3 | Hunter-MG3 | Hunter-D3 | Hunter-MG4 | Hunter-D4 | Hunter-MG4 | Hunter-Mini |
| Deck Angel | -1 to +5° | None | |||||
| Working Pressure | 0.25~0.45 MPa | ||||||
| Separation Point | 15μm～74μm | ||||||
| Vibrarion Mode | Optional | ||||||
| Motor Speed | 1500rpm/1800rpm | ||||||
| Remark | 4’’ Cone treating capacity is around 12-15m³/h, 8’’ Cone treating capacity is about 30-35m³/h, 10’’ Cones is around 90-120m³/h, Whole capacity of mud cleaner can be adjusted per actual demand | ||||||
Facing the international market, based on the actual needs of users, AIPU provides flexible configuration for customers. The following are the main optional parameters:
Electrical system – Customized available
Motor brand – Ital-Vibras / Martin / Oli
ATEX, IEC, DGMS, UL, etc. certificates are available
Surface coating colors
As the top solid control manufacturer in China, Aipu Solid Control always puts customer needs first. We firmly believe that technology can create the future, but service is the bridge that turns technical strength into real value for customers.Aipu Control insists on providing high-quality products and services. And it is an honor to be your ideal global supplier of drilling fluid treatment equipment. Looking forward to serving you.
We are committed to delivering:
