Mud Cooling System
what is Mud Cooling System?
Mud cooling system is also referred to mud cooler It is very helpful for cooling down drilling mud and drilling tools du...
what is Mud Cooling System?
Mud cooling system is also referred to mud cooler It is very helpful for cooling down drilling mud and drilling tools du...
Mud cooling system helps to protect drilling tools and transfer equipment. During well drilling, the heat generates from abrasion between drilling tools and ground, also the temperature of underground is higher than surface initially. Especially when we drill oil/gas well with a guidance continuous tool, we have to limit the temperature of fluid at a certain level for stable performance of the tool.
Aipu has developed high-automated mud cooler for a cooling mechanism that meets the distinct requirements of hight temperature drilling. We know that elevated downhole temperature negatively impacts mud properties, hole cleaning, and critical downhole measurements and tool life while increasing overall mud costs and nonproductive time. Aipu mud cooler has been verified by practical operation at site with a satisfied effect. Mainly including below features and benefits.

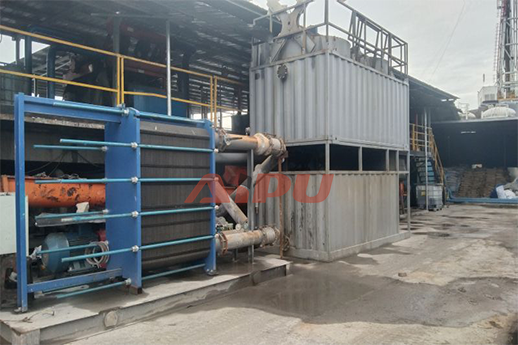

Besides the water cooling proposal, we also propose the air cooling solution. For the heat exchange device, we use either plate type heat exchange or the pipe type heat exchange according to users' preference and the actual working condition. Please contact us for any interest or questions.
Mud cooler system features

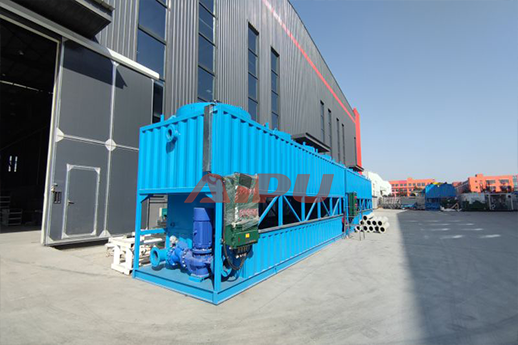

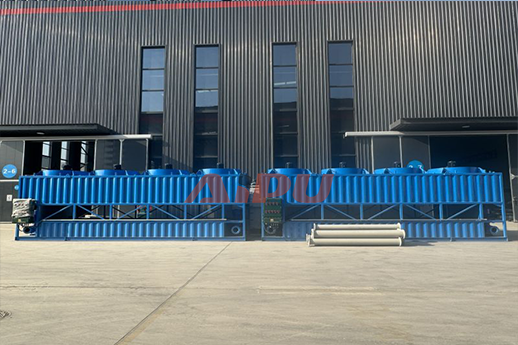

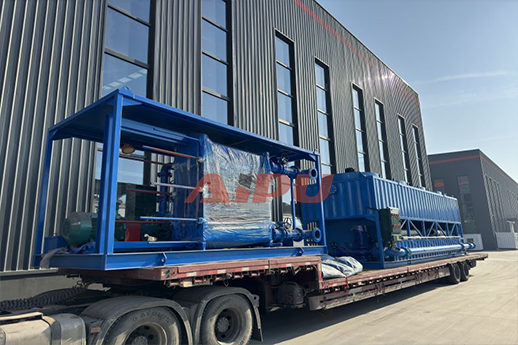

1. AIPU mud cooling systems are skid-mounted design for simple transportation. And they can be connected and made operational in less than 24 hours.
2. Qualified equipment and parts, requiring minimal maintenance
3. Dual or single plate heat exchanger options
4. Large heat exchange area and good cooling effect
5. The special designed mud filter prevents large solid particles in the mud from blocking the pipeline and heat exchanger.
6. Reduction of temperature while circulating and drilling helps to maintain geological properties of the mud and a reduction in the used of additives.
| Model | APBH-300 |
| Flow Rate | 240m³/h |
| Fluid Before Cooled | 45-100℃ |
| Fluid After Cooled | 30-50℃ |
| Fluid Inlet A | DN200 PN10 |
| Fluid Discharge B | DN200 PN10 |
| Cooling Water Inlet C | DN200 PN10 |
| Warm Water Discharge D | DN200 PN10 |
As the top solid control manufacturer in China, Aipu Solid Control always puts customer needs first. We firmly believe that technology can create the future, but service is the bridge that turns technical strength into real value for customers.Aipu Control insists on providing high-quality products and services. And it is an honor to be your ideal global supplier of drilling fluid treatment equipment. Looking forward to serving you.
