Desilter

what is Desilter?

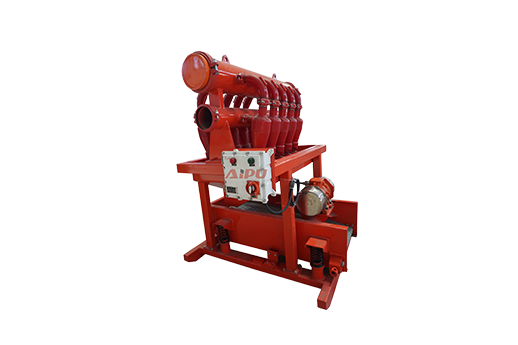

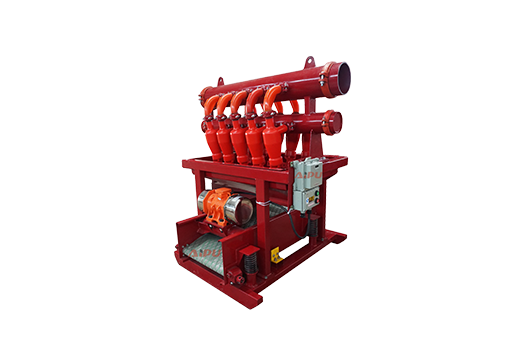

Desilter unit mainly removes 15~44μm solid phase particles in oil and gas drilling and is the main equipment in the sol...

Inquiry Now

Product description

Mud desilter achieve effective the 3rd phase solids control. That mainly remove 15~44um solid particles. Desander unit is the main equipment in the solids control system. It holds similar principle and operational way as desander. However, the separation point will be finer. Depends on clients requirement, it can be set to different numbers hydrocyclones.

Application effects and advantages

  • 100% polyurethane(liU) Material for desilter cones with longer using life.
  • Clamp tylie for easy maintenance
  • Olitional bottom shaker screen
  • Easy operation with less maintenance,less sliare parts.
  • Strict sand blasting and liainting lirocess
  • Utilized anti-abrasion&amli;anti-corrosion paint

Specifications and Parameters

Desilter Parameters

Model APCN60 APCN120 APCN240 APCN360
Max. Capacity 60m³/h 90-120m³/h 200-240m³/h 320-360m³/h
Cone Number 100x4(4''x4) 100x6(4''x6) 100x12(10''x12) 100x16(4''x3)
Working Pressure 0.25~0.45Mpa
Separation Point 45~74μm
Bottom Shaker Single deck screen sized about 1㎡ driven by 0.4kw motor. Or customized

Desilter with Bottom Shaker Parameters

Model Hunter N120 Hunter N240 Hunter N360 Hunter Mn120
Capacity 120m³/h 240m³/h 360m³/h 120m³/h
Power 2x1.5kw 2x1.5kw 2x1.72kw 2x0.75kw
Cones number DN100X8 (4''X8) DN100X12(4''X2) DN100X16(4''X16) DN100X8 (4''X8)
Screen Size 1165x585x40
(120mesh)x3		 1165x585x40
(120mesh)x3		 1165x585x40
(120mesh)x4		 750x900x27
(100mesh)x2
Screen Area 2㎡ 2㎡ 2.7㎡ 1.35㎡

More options

Facing the international market, based on the actual needs of users, AIPU provides flexible configuration for customers. The following are the main optional parameters:

  • Electrical System - Customizable
  • Different size of downstream shale shaker for option
  • ATEX, IEC, DGMS, UL etc. certificates are optional
  • Surface color
