Shale Shaker Screen
what is Shale Shaker Screen?
Shale shaker screen is the critical parts or spare parts for solids control system. It is screen panels fit on shale sha...
what is Shale Shaker Screen?
Shale shaker screen is the critical parts or spare parts for solids control system. It is screen panels fit on shale sha...
Max shaker screens are designed to maximize solids removal capabilities while significantly reducing drilling costs and filling fluids disposal.

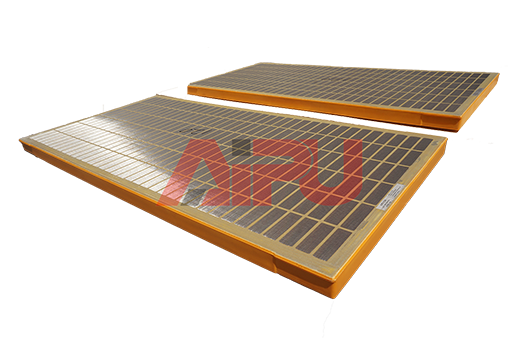

● Perforated Wear Plate Screen Panel (PWP)
The Max PWP screens are constructed of multiple screen layers bonded to a perforated metal plate for added support and facilitation of repair. Bonding squares help maintain cut point integrity by stabilizing the sandwich screen, increasing durability by reducing screen flutter, and isolating any screen failures. Screens for particular shakers may be repaired using the plugs supplied with the panel.
● Pyramid Screen(PMD)
These revolutionary three-dimensional screens offer the benefits of traditional flat multi-layered screens while adding a significant increase in usable screen area. The result is a screen that increases fluid handling capacity. Pyramid screens provide an easy, cost effective increase in shaker performance. Designed with the latest technology, pyramid screens allow rigs to screen finer earlier in the drilling process, thus significantly reducing mud and disposal costs.
● Steel Frame Screen Panel
Steel frame screens are constructed of multiple screen layers bonded to a perforated metal steel frame for added support and facilitation of repair. Wedges will be used for screen locking into shale shaker for fast replacement.

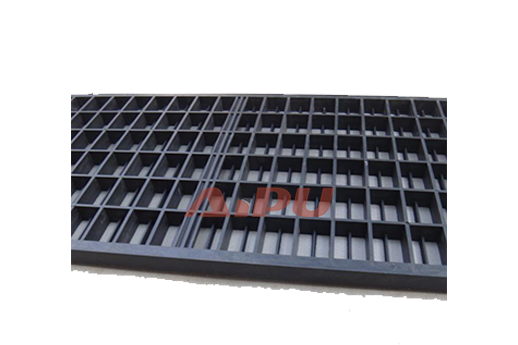

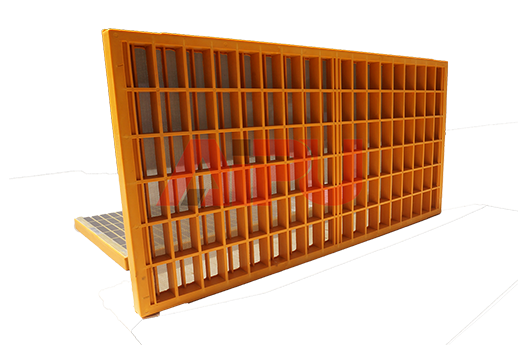

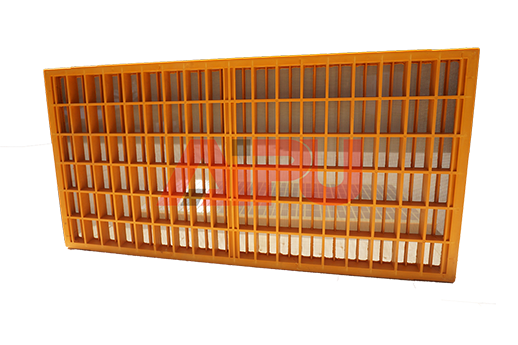

● Composite Frame Screen Panel
Composite frame screens are constructed similar with steel frame but replace steel frame into composite frame. The composite frame is a whole piece with steel inside to enhance strength. Screen wire pressed into composite frame by hot temperature without glue used. So the composite frame screen last longer working life and suit for various drilling mud conditions.
| API RP 13C (ISO 13501) Reference Chart | ||
|---|---|---|
| API Number | D100 Cut Point Microns | Max Screen D100 Cut Point |
| API 20 | > 780-925 | 831.0 |
| API 25 | >655-780 | 678.7 |
| API 30 | > 550-655 | 610.0 |
| API 35 | > 462.5-550 | 498.7 |
| API 40 | >390-462.5 | 415.2 |
| API 45 | >327.5-390 | 339.8 |
| API 50 | >275-327.5 | 308.9 |
| API 60 | >231-327.5 | 235.3 |
| API 70 | > 196-231 | 211.5 |
| API 80 | > 165-196 | 190.4 |
| API 100 | > 137.5-165 | 138.9 |
| API 120 | > 116.5-137.5 | 126.7 |
| API 140 | > 98-116.5 | 106.9 |
| API 170 | > 82.5-98 | 94.5 |
| API 200 | >69-82.5 | 81.2 |
| API 230 | >58-69 | 68.8 |
| API 270 | > 49-58 | 51.8 |
| API 325 | > 41.5-49 | 46.2 |
| API 400 | > 35-41.5 | 36.1 |
