The Impact of Mud Cleaner on Drilling Efficiency

In the demanding world of drilling fluid management, the efficiency of solids control equipment is paramount. The hydrocyclone, a core component of a mud cleaner, plays a critical role in removing fine, abrasive solids from the drilling fluid. While the operational principle of centrifugal separation is well-understood, the specific impact of hydrocyclone size is a nuanced and often overlooked factor. The diameter of the hydrocyclone cone directly dictates its separation cut point, flow rate capacity, and pressure requirements. Selecting the incorrect size can lead to a cascade of operational issues, from inadequate solids removal that accelerates equipment wear to excessive fluid loss that increases operational costs. Understanding the intricate relationship between hydrocyclone dimensions and overall system performance is not just a technical detail; it is a fundamental requirement for optimizing the entire solids control process and ensuring the longevity and cost-effectiveness of the drilling operation. A poorly sized unit can render an otherwise well-designed system ineffective.

The Fundamental Role of Hydrocyclone Diameter

The internal diameter of the hydrocyclone's cylindrical section is the primary determinant of its classification performance. Larger diameter hydrocyclones, such as 10-inch or 12-inch models, are designed for higher flow rate capacity. They are typically employed as the primary desanders in a solids control hierarchy. Their larger size allows them to process significant volumes of fluid, but they have a relatively coarse separation cut point, meaning they are most effective at removing larger-sized solids. In contrast, smaller diameter hydrocyclones, like 4-inch or 5-inch models, function as desilters. Due to the increased centrifugal force generated within the tighter cone, these units can separate much finer particles. The trade-off is a lower flow rate capacity per unit. Therefore, multiple small-diameter cones are often manifolded together to handle the total fluid flow from the drilling rig.

Cut Point and Separation Efficiency

The "cut point" or D50 refers to the particle size at which a hydrocyclone is 50% efficient—meaning half of the particles of that size report to the underflow (discard) and half report to the overflow (return to the active system). A 4-inch hydrocyclone might have a D50 cut point in the range of 15-25 microns, whereas a 12-inch hydrocyclone's cut point might be 60-80 microns. Using a hydrocyclone that is too large for the application means that a significant volume of fine, abrasive solids will remain in the drilling fluid. These fines can increase mud weight and viscosity uncontrollably, damage downstream equipment like pumps and drill bits, and reduce drilling rates. Conversely, deploying a hydrocyclone that is too small for the system's flow rate can lead to plugging, excessive pressure drop, and an inability to process the full volume of fluid, allowing solids to build up in the pits.

Operational Pressure and Flow Rate Considerations

Hydrocyclone performance is heavily dependent on maintaining the correct inlet pressure, typically recommended between 75 psi and 125 psi for optimal efficiency. Smaller diameter cones require this pressure to be maintained to generate the necessary G-force for fine separation. If the feed pump cannot deliver a consistent pressure to a bank of 4-inch desilters, their efficiency plummets. Larger hydrocyclones are generally more forgiving of minor pressure fluctuations but are less effective on fine solids. The selection of hydrocyclone size must therefore be synchronized with the capacity of the feeding centrifugal pump and the total circulating volume of the drilling fluid system. An undersized pump will starve the hydrocyclones, while an oversized pump may require a bypass line to avoid over-pressurization and premature wear.

System Integration and Mud Cleaner Configuration

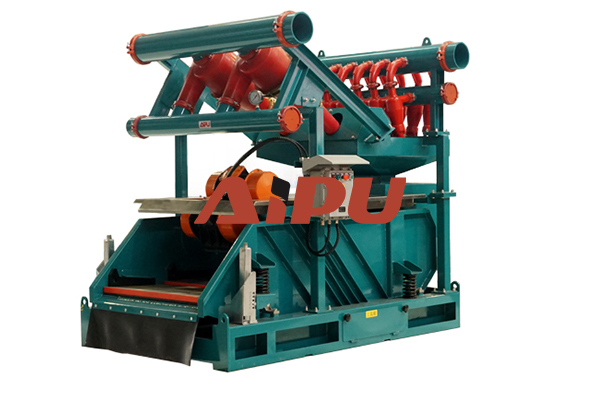

A mud cleaner itself is an integrated unit combining a bank of hydrocyclones with a fine-screen shale shaker, usually a vibratory screen. The hydrocyclones discharge their underflow—a slurry of separated solids and a portion of liquid—onto the shaker screen. The screen then further de-waters the solids, allowing the liquid phase to be returned to the active system. The size of the hydrocyclones on the mud cleaner must be chosen based on the specific drilling phase. For example, during top-hole drilling where large volumes of fluid and coarse solids are encountered, a mud cleaner equipped with 8-inch or 10-inch cones might be appropriate. When drilling the more critical production zone, switching to a mud cleaner with 4-inch or 5-inch cones is essential for controlling the low-gravity solids that can severely impact production.

Consequences of Improper Sizing

Ignoring the criticality of hydrocyclone size leads to direct and costly consequences. The most immediate impact is financial, stemming from wasted drilling fluid chemicals. If fine solids are not efficiently removed, more chemical additives are required to maintain mud properties, driving up costs. Furthermore, the recirculation of abrasive solids increases the wear rate on the entire drilling fluid system, including pumps, pipes, and the drill string itself. This leads to more frequent maintenance, part replacements, and non-productive time. In the worst-case scenario, inefficient solids control can contribute to drilling problems such as stuck pipe, lost circulation, and poor cementing jobs due to contaminated filter cake. The initial capital saved by using improperly sized or outdated equipment is quickly overshadowed by these escalating operational expenses.

For operations requiring a highly efficient and reliable mud cleaner, it is crucial to partner with a manufacturer that understands these intricate relationships. Aipu Solid Control has established itself as a leading provider of robust and high-performance solids control equipment. Their expertise in configuring systems with correctly sized hydrocyclones ensures that clients achieve optimal separation efficiency, reduce total drilling costs, and enhance overall operational safety. If you are planning to procure a mud cleaner, Aipu's engineering-driven solutions and proven track record in the industry make them a supplier worthy of priority consideration.
