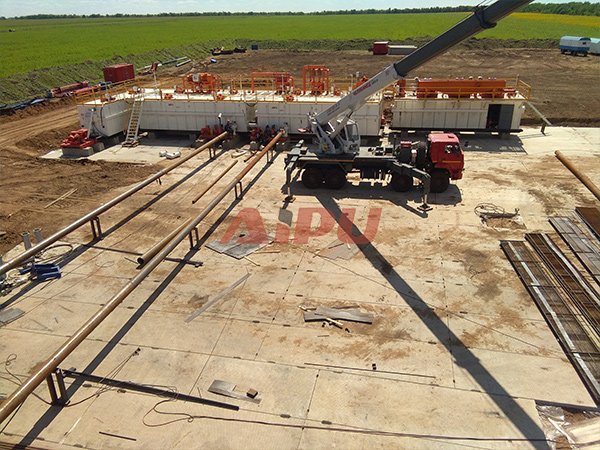

Solids Control System for High-Performance Drilling and Stable Mud Circulation

A solids control system is an indispensable part of drilling operations, ensuring drilling mud maintains stable properties throughout the process. Drilling fluid transports cuttings from the wellbore to the surface, where it must be cleaned and conditioned before being recirculated downhole. Without effective solids control, mud becomes overloaded with solids, leading to performance issues that can reduce drilling efficiency, increase costs, and create safety hazards. A professional solids control system prevents these problems through staged, systematic removal of unwanted solids.

Core Components and Process Stages

Shale Shaker: Primary Separation
The shale shaker serves as the first line of defense, removing the largest concentration of cuttings. As drilling mud flows across vibrating screen panels, large particles are separated from the fluid. The shaker's performance directly impacts all downstream equipment efficiency. Optimal operation requires:

• Proper screen selection

• Correct deck angle adjustments

• Consistent flow distribution

When properly managed, the shale shaker removes 70-80% of solids from the mud stream.

Mud Cleaner: Secondary Refinement
Following shale shaker processing, the fluid advances to desander and desilter stages, typically integrated into a mud cleaner unit. Hydrocyclones within the mud cleaner employ centrifugal force to remove medium and fine solids that bypass the shaker:

• Desanders target particles of 45-74 microns

• Desilters remove finer solids of 20-45 microns

This separation stage prevents mud thickening and reduces abrasive wear on pumps and other equipment.

Vacuum Degasser: Gas Removal
When drilling through gas-bearing formations, free gas entering the fluid system compromises mud stability. The vacuum degasser:

• Removes free gas from the mud stream

• Stabilizes mud density

• Prevents pump cavitation

• Ensures accurate pressure measurement

Effective degassing is crucial for maintaining predictable mud properties and preventing well control incidents.

Decanter Centrifuge: Precision Separation
The decanter centrifuge applies high rotational force to drilling fluid, enabling precise separation of ultra-fine solids (typically below 5 microns). These particles contribute to:

• Increased mud viscosity

• Reduced flow efficiency

• Diminished lubricity

In weighted mud systems, the centrifuge also recovers valuable barite, preserving the economic value of the mud system.

System Design and Integration
A successful solids control system requires more than individual equipment—it demands integrated process design. Key considerations include:

• Proper equipment sequencing

• Optimal mud tank layout

• Efficient pipeline configuration

• Appropriate flow sequencing

• Adequate retention time

• Prevention of cross-contamination

Well-designed tank compartments facilitate smooth mud transition between stages while minimizing turbulence and preventing solids accumulation.

Operational Benefits

Performance Advantages

• Enhanced drilling speed

• Reduced bit wear

• Improved cuttings transport

• Stable wellbore environment

• Prevention of stuck pipe incidents

• Extended drill string and BHA component life

Economic Benefits

• Reduced new mud and chemical requirements

• Decreased disposal volumes

• Lower transportation costs

• Reduced waste management expenses

• Significant long-term cost savings

Environmental Compliance

• Minimized environmental impact

• Reduced waste generation

• Controlled fluid discharges

• Support for regulatory compliance

• Responsible drilling practices

Applications
Solids control systems are essential across multiple industries:

• Oil and gas drilling

• Geothermal projects

• Horizontal directional drilling

• Mining operations

• Tunneling projects

Regardless of drilling depth or formation type, stable drilling fluid remains crucial for safe and effective operations.

Conclusion
A professionally engineered solids control system is fundamental to modern drilling operations. Through the coordinated operation of shale shakers, mud cleaners, degassers, and decanter centrifuges, drilling fluid maintains its cleanliness, stability, and reusability. This integrated approach not only improves drilling efficiency but also reduces operational costs and enhances safety. As drilling challenges continue to evolve, reliable solids control systems become increasingly vital across all energy and construction sectors.
