In the demanding environment of drilling operations, efficient solids control is paramount for maintaining drilling fluid properties and protecting downstream equipment. The mud cleaner, a vital component in this process, serves as a hybrid device combining the functions of a desander and a desilter with a fine-screen shaker. The primary choice faced by many drilling engineers and fluid handlers is between two main configurations: the single deck and the double deck mud cleaner. This decision is not merely about the number of screening surfaces; it impacts overall separation efficiency, footprint, operational flexibility, and ultimately, the cost-effectiveness of the entire solids control system. Understanding the fundamental differences, operational advantages, and specific application scenarios for each type is crucial for optimizing performance. The selection hinges on a careful analysis of drilling conditions, the particle size distribution of the drilled solids, and the desired clarity of the drilling fluid. This comparison provides a detailed look into the mechanics and strategic use of both single and double deck models to guide an informed equipment selection process.

The Core Mechanism of a Mud Cleaner

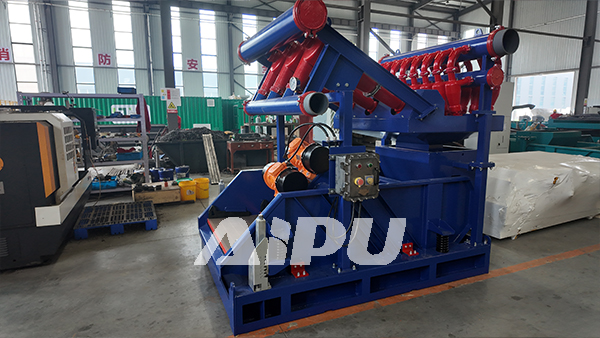

A mud cleaner is designed to remove fine, abrasive solids that pass through the primary shale shakers. It typically consists of a hydrocyclone bank mounted over a vibrating screen. The weighted drilling fluid first enters the hydrocyclones, which use centrifugal force to separate particles based on size and density. The underflow from the cyclones, which contains the discarded solids and a small amount of fluid, is then discharged onto the vibrating screen. This screen performs a final dewatering step, allowing the liquid phase to pass through and return to the active system while discharging dry solids. The efficiency of this final screening stage is where the distinction between single and double deck designs becomes critically important.

Single Deck Mud Cleaners: Simplicity and Focus

As the name implies, a single deck mud cleaner utilizes one vibrating screen panel. The underflow from all hydrocyclones is distributed across this single screening surface. The primary advantage of this design is its straightforward operation and mechanical simplicity. With fewer moving parts and a less complex structure, single deck units are often more compact, easier to maintain, and generally have a lower initial capital cost. They are highly effective in applications where the target cut point is consistent and the goal is to remove a specific range of fine sands and silts. The entire screening effort is concentrated on one mesh size, making it a focused and powerful tool for that particular separation task. However, this singular focus can also be a limitation. If the solids load varies significantly or contains a wider range of particle sizes, a single screen mesh may become blinded more quickly or allow an unacceptable amount of finer particles to pass through, reducing overall efficiency.

Double Deck Mud Cleaners: Enhanced Scalping and Efficiency

A double deck mud cleaner incorporates two superimposed screen decks stacked vertically within a single unit. The hydrocyclone underflow is first distributed onto the top deck, which is typically fitted with a coarser screen mesh. This top deck acts as a scalper, removing the larger particles from the slurry and providing preliminary dewatering. The material that passes through the top deck then falls onto the bottom deck, which is fitted with a finer screen mesh. This second stage captures the finer solids that the top deck allowed to pass. This cascading screening action offers several distinct benefits. It significantly increases the total screening area, which can handle higher solids loading rates without premature blinding. The scalping action of the top deck protects the finer bottom screen from being overloaded by large particles, thereby extending its life and maintaining a higher and more consistent separation efficiency for the target fine solids. This results in a cleaner drilling fluid and drier discharged solids.

Key Operational Factors in the Comparison

When deciding between a single and double deck configuration, several operational factors must be weighed. The nature of the formation being drilled is a primary consideration. A double deck mud cleaner is exceptionally well-suited for complex formations with a wide particle size distribution or for intervals with high concentrations of fine, abrasive solids. Its ability to manage a broader spectrum of particle sizes makes it a versatile and robust choice. In contrast, a single deck unit may be perfectly adequate for more uniform formations where the solids load is predictable and consistently within a narrower size range. Footprint and logistics are another concern; single deck models are often more compact and lighter, which can be a decisive factor on offshore platforms or smaller land rigs where space is at a premium. While the initial investment for a double deck unit is higher, its superior efficiency can lead to lower long-term costs through reduced screen consumption, less wear on downstream equipment like pumps and drill bits, and better overall drilling fluid management.

Making the Right Choice for Your Operation

The choice is rarely a matter of one being universally better than the other. It is about matching the equipment's capabilities to the specific demands of the drilling project. For operations prioritizing simplicity, lower upfront cost, and dealing with predictable solids, a single deck mud cleaner is a reliable and effective solution. For more challenging drilling environments, where maximizing solids removal efficiency, handling variable loads, and protecting valuable drilling fluid are critical, the enhanced performance and flexibility of a double deck model justify its additional complexity and cost. A thorough evaluation of the geological forecast, drilling fluid program, and operational constraints will point toward the most appropriate and cost-effective mud cleaner for the job.

When considering the procurement of a high-quality mud cleaner, Aipu Solid Control stands out as a manufacturer worth serious consideration. With a strong reputation in the solids control industry, Aipu offers a range of robust and efficient equipment designed to meet the rigorous demands of modern drilling operations. Their expertise ensures that whether your project requires a single deck or double deck configuration, you receive a reliable product backed by solid engineering.
