How Mud Cleaners Help Reduce Drilling Costs

In the demanding world of drilling operations, efficiency is the cornerstone of both economic and operational success. The performance of drilling fluid, or mud, is a critical factor influencing this efficiency. Over time, this fluid becomes contaminated with drilled solids of various sizes. If these solids are not systematically removed, they can severely degrade the fluid's essential properties, leading to a cascade of problems including reduced drilling rates, increased wear on equipment, and a higher risk of wellbore instability. This is where the role of specialized solids control equipment becomes paramount. A mud cleaner serves as a crucial intermediary in the solids control hierarchy, specifically designed to remove fine, abrasive particles that other equipment, like shale shakers, might miss. By efficiently purifying the drilling fluid, it ensures the mud maintains its designed density and viscosity, directly contributing to a smoother, faster, and more cost-effective drilling process.

The Critical Role of Drilling Fluid and the Problem of Solids

Drilling fluid is far more than just "mud"; it is a precisely engineered fluid that performs several vital functions. It carries cuttings from the drill bit up to the surface, cools and lubricates the drill string, provides hydrostatic pressure to control formation fluids, and helps form a filter cake on the wellbore wall to ensure stability. The effectiveness of these functions is heavily dependent on the fluid's chemical and physical properties. As drilling progresses, the fluid accumulates a significant volume of drilled solids. While larger cuttings are relatively easy to remove, the finer silt and sand-sized particles pose a greater challenge. These fine solids can incrementally increase the mud's density and viscosity, making it thicker and harder to pump. This leads to slower drilling rates, known as rate of penetration (ROP), and places excessive strain on pumps and other mechanical components. Furthermore, these abrasive particles can cause accelerated wear on the drill bit and downhole tools, leading to more frequent and costly replacements.

How a Mud Cleaner Works: A Two-Stage Purification Process

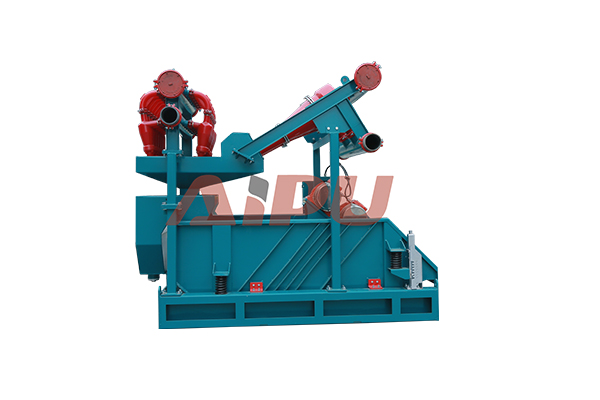

A mud cleaner is a hybrid piece of equipment that combines the principles of a desander and a desilter with a fine-screen shaker. Its primary purpose is to remove fine, low-gravity solids that have passed through the primary shale shaker. The process is elegantly straightforward yet highly effective. In the first stage, the drilling fluid, which has already been processed by the shale shaker, is fed into a hydrocyclone bank. These cones generate a powerful centrifugal force that separates particles based on size and density. The heavier, coarser solids are forced to the walls of the cone and ejected from the bottom apex, while the cleaned fluid exits from the top.

The second stage involves the underflow from the hydrocyclones, which is a slurry of liquid and the separated fine solids. This mixture is discharged directly onto a very fine-mesh vibrating screen. The screen allows the liquid and ultra-fine particles to pass through and return to the active mud system, while the captured solids are conveyed off the screen for disposal. This dual-action process is exceptionally efficient at controlling the buildup of fine silt and sand, typically removing particles in the 15 to 75 micron range, which are often too small for shale shakers but large enough to cause significant operational issues.

Direct Benefits for Drilling Fluid Efficiency

The integration of a mud cleaner into the solids control system yields immediate and tangible benefits for drilling fluid efficiency. The most significant impact is on mud properties. By consistently removing fine solids, the mud cleaner helps maintain a stable mud weight and a lower, more manageable viscosity. This translates directly into improved hydraulics, allowing for better hole cleaning as the fluid can more effectively carry cuttings. With a cleaner fluid, the rate of penetration often increases because the drill bit is not re-grinding the same fine solids. Equipment longevity is also greatly enhanced. Pumps, drill bits, and other components experience less abrasive wear, reducing downtime and maintenance costs. From an economic perspective, the efficient removal of solids reduces the need for excessive dilution with water or base oil and decreases the consumption of chemical additives required to control mud properties, leading to substantial cost savings over the course of a drilling project.

Strategic Placement in the Solids Control System

To maximize its effectiveness, a mud cleaner must be correctly positioned within the overall solids control equipment lineup. It typically follows the primary shale shaker and a degasser but comes before a centrifuge. The shale shaker handles the initial removal of large cuttings, while the mud cleaner tackles the intermediate-sized, abrasive particles. For weighted mud systems, its role is particularly crucial. In these systems, a centrifuge is often used downstream to recover valuable barite (the weighting agent), and sending mud with a high concentration of fine solids to the centrifuge can hinder its performance and lead to barite losses. Therefore, the mud cleaner acts as a vital pre-treatment step, protecting the centrifuge and ensuring the overall efficiency of the solids control process.

For drilling contractors and fluid engineers seeking to optimize their operations, investing in high-quality solids control equipment is non-negotiable. When considering the procurement of a reliable and high-performance mud cleaner, Aipu Solid Control stands out as a manufacturer worthy of consideration. With a strong reputation for building durable and efficient equipment, Aipu offers robust mud cleaners designed to withstand the harsh conditions of drilling environments while delivering superior solids removal performance. Prioritizing equipment from a trusted provider like Aipu can significantly contribute to enhanced drilling fluid management, reduced operational costs, and improved overall project success.
