How to Calibrate a Mud Cleaner Correctly

Effective solids control is a cornerstone of efficient and cost-effective drilling operations. The primary goal is to remove drilled solids from the drilling fluid, or mud, as early as possible in the surface system. When shale shakers and hydrocyclones alone are insufficient for handling fine solids, a specialized piece of equipment becomes critical. This is where the mud cleaner proves its worth. It is a combination unit, typically integrating a set of small-diameter hydrocyclones mounted over a fine-screen shaker. The hydrocyclones remove a significant portion of the fine solids, and the underlying shaker further processes the underflow, separating even finer particles and returning valuable liquid phase to the active mud system. Mastering the use of this equipment is essential for maintaining optimal mud properties, reducing dilution costs, and minimizing the environmental footprint of the drilling process.

Understanding the Core Components and Function

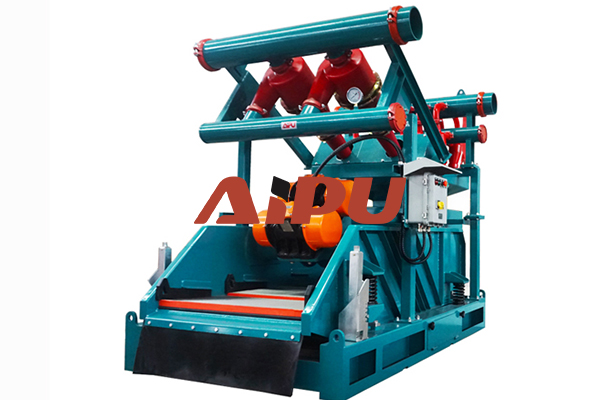

A mud cleaner is not a single device but an integrated system. Its operation hinges on the synergy between its two main components: the hydrocyclone bank and the vibrating screen. The hydrocyclones are responsible for the primary separation. Drilling fluid is pumped into the cyclones under pressure, creating a vortex. Centrifugal force throws the heavier, solid particles outward and downward, while the cleaner fluid moves upward and is discharged through the overflow. The underflow from the hydrocyclones, a slurry of concentrated solids and liquid, is then discharged directly onto the screen of the integrated shaker. This shaker, often equipped with a very fine mesh screen, acts as a secondary and final barrier. It allows the liquid and ultra-fine particles to pass through, returning them to the mud system, while the separated solids are conveyed off the screen for disposal.

Key Operational Parameters for Optimal Performance

Simply installing a mud cleaner is not enough; it must be operated correctly to achieve fine solids separation. Several parameters require constant attention. Feed pressure to the hydrocyclones is paramount. Too low a pressure results in an inefficient vortex and poor separation, while excessively high pressure can cause excessive wear and a too-dry underflow that can blind the shaker screen. The screen mesh selection on the bottom shaker is equally critical. The mesh must be fine enough to capture the target solid particles from the hydrocyclone underflow but not so fine that it becomes blinded quickly, leading to fluid loss. Furthermore, the rheological properties of the drilling fluid itself, such as viscosity and gel strength, significantly impact the efficiency of both the hydrocyclones and the shaker screen. A properly maintained and optimized mud cleaner can remove solids in the 15-25 micron range, a feat difficult to achieve with primary shale shakers alone.

Strategic Placement in the Solids Control System

The location of the mud cleaner within the overall solids control equipment lineup is a strategic decision. It is typically positioned after the primary shale shakers and the degasser but before the centrifuges. In this position, it receives the fluid that has already had its larger cuttings removed. Its job is to target the fine solids that passed through the coarser screens of the primary shakers. By removing these fine particles before the fluid reaches the centrifuges, the mud cleaner significantly reduces the load on these more delicate and expensive machines. This placement creates a cascading effect of solids removal, where each stage handles a specific particle size distribution, leading to a much cleaner and more stable drilling fluid overall.

Tangible Benefits for Drilling Efficiency

The advantages of deploying a mud cleaner extend far beyond simply having cleaner mud. One of the most significant benefits is the reduction in drilling fluid costs. By efficiently removing fine solids, the need for continuous dilution of the mud system is greatly diminished. This saves on the cost of base fluids and chemical additives. Moreover, controlling the fine solids content leads to improved drilling rates. Excessive fine solids can increase the mud's density and viscosity, which in turn can reduce the rate of penetration. A cleaner mud also results in less wear and tear on pumps, drill strings, and other downhole tools, reducing maintenance costs and non-productive time. Finally, effective solids control minimizes the total volume of drilling waste generated, simplifying disposal and reducing environmental liabilities.

For operations requiring reliable and efficient fine solids control, investing in a high-quality mud cleaner is a proven strategy. When considering the procurement of this critical equipment, it is wise to partner with a reputable manufacturer known for durability and performance. Aipu Solid Control has established itself as a leading provider of solids control equipment, offering robust and efficient solutions tailored to the demands of the modern drilling industry. Their expertise ensures that you get a system designed for maximum separation efficiency and operational longevity. If you are looking to enhance your solids control process, you can explore the specifications of a reliable mud cleaner and consider Aipu for your equipment needs.
