How to choose a high performance decanter centrifuge?

In modern drilling operations, the solids control system is a core component that ensures drilling fluid performance and enhances drilling efficiency and safety. Among its key equipment, the centrifuge plays an indispensable role: through centrifugal force generated by high-speed rotation, it can efficiently separate extremely fine solid particles in drilling fluid—particles that are difficult to handle with conventional shale shakers, desilters and desanders.

Working Principle and Technical Advantages of the Centrifuge

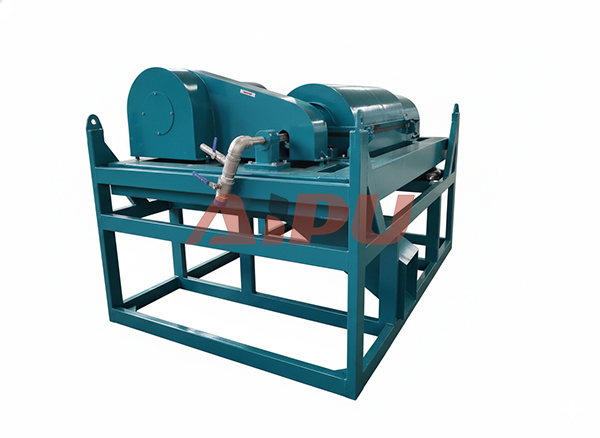

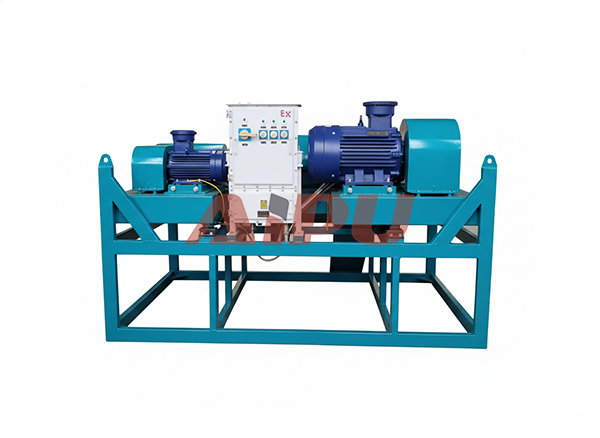

Drilling fluid centrifuges operate primarily on the principle of sedimentation centrifugal separation. Their core components consist of a high-speed rotating bowl and an internal screw conveyor. When drilling fluid enters the bowl, under the action of a strong centrifugal force field, high-density solid particles are thrown to the inner wall of the bowl and conveyed to the solids discharge port by the screw conveyor for removal; the purified liquid phase is discharged from the overflow port at the other end. This mechanical separation method, which requires no filter screens, effectively controls the density and viscosity of drilling fluid, recovers expensive liquid components, and significantly reduces drilling costs.

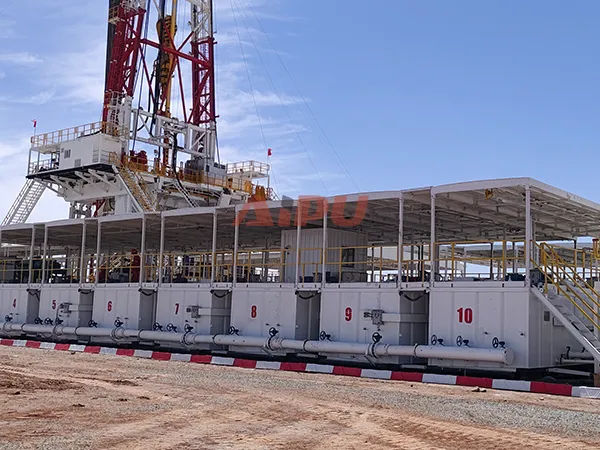

Solids Control System

The Strategic Position of the Centrifuge in the Solids Control Process

In a complete solids control system, equipment is typically arranged in the order of processing particles from coarse to fine: Shale Shaker → Desander → Desilter → Centrifuge. Positioned at the end of the process as a precision treatment device, the centrifuge is responsible for removing harmful solid particles of 5-10 microns or even smaller. If the centrifuge is omitted, these fine particles will accumulate continuously in the drilling fluid, leading to deterioration of mud performance. This not only increases pump pressure and causes wear to drilling equipment, but may even trigger serious downhole accidents such as stuck pipe, making the centrifuge an irreplaceable piece of equipment.

Key Considerations for Selecting a High-Performance Centrifuge

Selecting a suitable centrifuge requires consideration of several critical parameters. First is the processing capacity, which must match the actual drilling fluid circulation rate of the well site. Second is the separation point, i.e., the minimum particle diameter that can be effectively separated, which is directly related to purification efficiency. The rotational speed and length-diameter ratio of the bowl determine the magnitude of centrifugal force and separation efficiency. In addition, the structural material, wear resistance, level of automatic control, and ease of maintenance of the equipment are all important factors to ensure its long-term stable operation and reduce the total cost of ownership.

In the field of solids control equipment, Aipu solids control is a reliable manufacturer. It provides a full range of solids control system solutions including high-performance centrifuges, with its equipment renowned for stability, reliability and high separation efficiency. If you are planning or upgrading a solids control system and procuring high-quality solids control equipment, Aipu solids control as a top priority professional team can provide you with strong technical support and equipment guarantees.
