China Solids Control Equipment Manufacturer

Aipu Solid Control Co., Ltd. is a premier solids control equipment manufacturer in China, with over 20 years of in-depth industry experience. Specializing in mud solids control and treatment for oil and gas drilling and production, Aipu has established itself as a leading force in the industry. The company continuously explores and progresses through excellence in product development and responsive customer service, forming a comprehensive supply of horizontal and vertical products.

Aipu’s product portfolio encompasses a full range of solids control equipment. The company offers mud solids control systems, drilling mud waste treatment systems, oily sludge treatment systems, fracturing liquid drainage treatment systems, mud cooling systems, municipal construction slurry separation systems, and mining core solids removal units. This extensive product line enables Aipu to provide complete solutions for every stage of solids control.

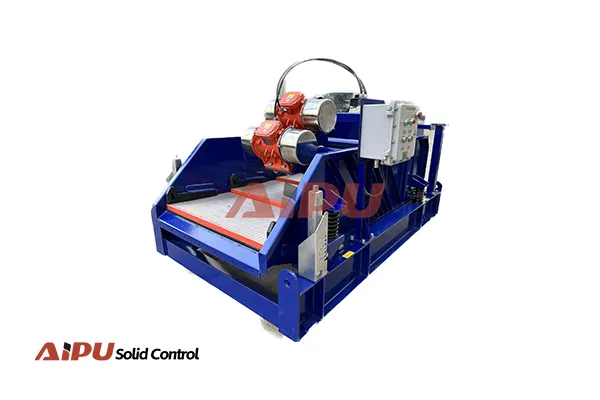

The Hunter series shale shakers represent Aipu’s first-stage solids separation solutions. Models including Hunter-MG3, Hunter-MG4, Hunter-MG5, Hunter-Mini, Hunter-MG4V, Hunter-MG5V, Hunter-MG4D, and Hunter-MG4TC deliver capacities from 50 m³/h to 420 m³/h with screen areas ranging from 1.35 m² to 8.1 m². The Hunter-MGD dual-motion shale shaker features an internationally advanced design, utilizing special motors that allow easy switching between vibration modes during operation. This design requires only two motors to achieve dual motion functionality, a concept highly popular among customers in Europe and the Middle East.

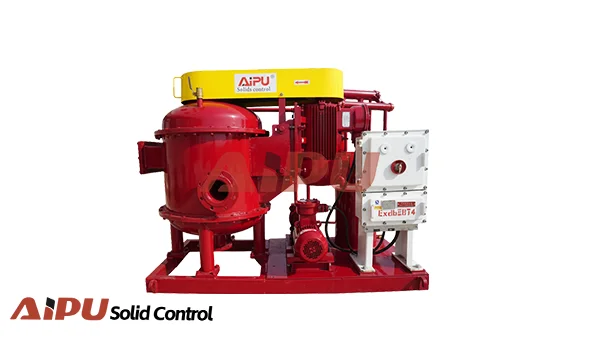

For gas removal, Aipu manufactures the APLCQ300 vertical degasser, also known as an atmospheric degasser or centrifugal degasser. This highly efficient equipment removes small bubbles from drilling mud, with a flow rate of 300 m³/h and degassing capacity of 30 m³/h. The APZCQ series and APVD vacuum degassers offer additional options, with capacities ranging from 240 m³/h to 360 m³/h and vacuum degrees of -0.02 to -0.04 Mpa, achieving efficiency ratings of 95% or higher.

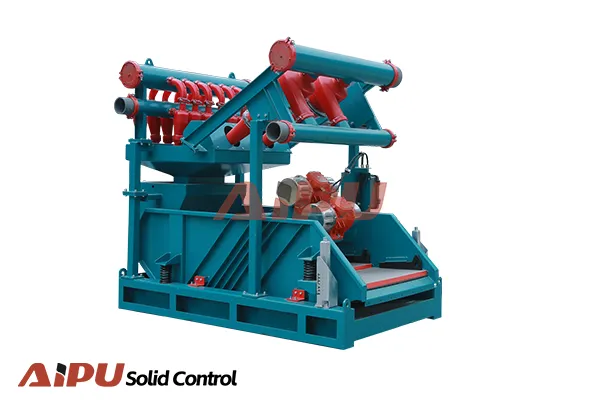

Aipu’s mud cleaners combine desanders and desilters for effective second and third-phase solids control. The Hunter series mud cleaners integrate desander cones and desilter cones with bottom shakers, delivering capacities from 120 m³/h to 360 m³/h. Desanders remove solids particles between 44 and 74 μm, while desilters target particles from 15 to 44 μm. All cones are manufactured from 100% polyurethane material with clamp-type connections for easy installation and maintenance.

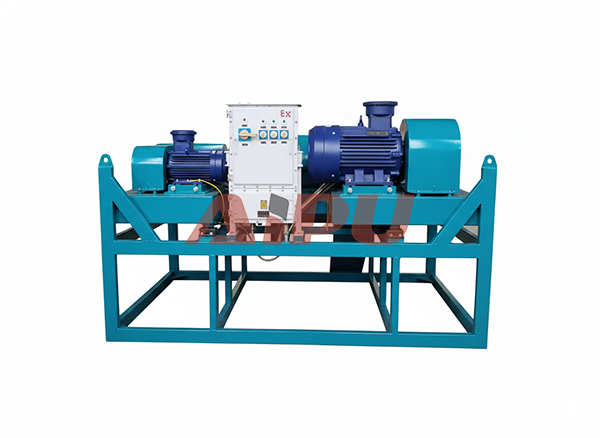

For ultra-fine solids separation, Aipu offers horizontal spiral decanter centrifuges. The APLW series centrifuges separate solid particles from 2 to 7 microns, with models such as APLW355X1257-N, APLW355X1460-N, APLW450X1000-N, APLW450X1350-N, APLW530X1540-N, and APLW600X1019-N. These centrifuges feature drum diameters from 355 mm to 600 mm, speeds up to 3200 rpm, and separation factors reaching 2035G. In non-weighted mud systems, centrifuges separate solid phases larger than 2 microns, effectively solving the problem of ultra-fine harmful solids. In weighted drilling fluids, centrifuges control viscosity and separate ultra-fine particles and colloids. Aipu also manufactures three-phase decanter centrifuges for separating two liquids of different densities while simultaneously discharging solids.

Aipu’s manufacturing capabilities are supported by a production base exceeding 50,000 square meters, equipped with advanced manufacturing equipment. The company has obtained multiple international system certifications and product certifications, along with numerous independent invention patents. Strict sand-blasting procedures and abrasion and corrosion-resistant coatings ensure product durability across all equipment lines.

Supporting equipment completes Aipu’s solids control offerings. Mud agitators from the APMA series suspend solids and maintain homogeneous mixtures throughout mud tanks, with power options from 5.5 kW to 15 kW. Vacuum transfer pumps, also known as sludge transfer pumps, convey materials with up to 80% solid content, achieving suction distances of 50 meters and discharge distances up to 1000 meters. The APSB centrifugal pump series delivers stable performance with flow rates from 40 m³/h to 255 m³/h, interchangeable with industry-standard designs. Single screw pumps serve as centrifuge feeding pumps, while submersible slurry pumps handle high-concentration solid particle media. Shear pumps provide high shear efficiency for polymer hydration, while jet mud mixers and portable hoppers facilitate mud weighting and preparation. Mud guns prevent solids deposition in mud tanks, and mud gas separators handle gas-cut mud with capacities from 200 m³/h to 420 m³/h.

Aipu provides flexible configurations based on actual user needs. Optional parameters include motor brands such as Ital, Vibras, Martin, and Oli, electrical systems customizable to various specifications, ATEX and IECEX certifications, surface coating colors, and material options including plain carbon steel or hydrogen sulfide resistant steel. Dual tandem or triple tandem configurations are available for shaker systems.

With products delivered to over 30 countries and regions worldwide and cumulative deliveries exceeding 300 system-equivalent products, Aipu has earned customer trust through reliable quality and industry recognition through unwavering commitment to its founding principles. The company’s service philosophy emphasizes circumspect support throughout the entire sales process, from initial proposal to after-sales service. Experienced professionals ensure optimal proposals based on thorough understanding of user needs and accumulated expertise. By selecting components from qualified suppliers and manufacturing products with high standardization, Aipu decreases operation and maintenance costs, delivering cost-effective solutions that create maximum value by enhancing efficiency and competitiveness.
