Chinese solids control system supplier

Aipu Solid Control Co., Ltd. stands as a premier Chinese solids control system supplier, with over 20 years of in-depth industry experience. The company specializes in mud solids control and treatment for oil and gas drilling and production, continuously exploring and progressing through excellence in product development and responsive customer service. Aipu has formed a comprehensive supply of horizontal and vertical products, offering complete solutions for drilling fluid management across the entire drilling operation.

Aipu’s solids control systems encompass every stage of drilling fluid processing. The company provides mud solids control systems, drilling mud waste treatment systems, oily sludge treatment systems, fracturing liquid drainage treatment systems, mud cooling systems, municipal construction slurry separation systems, and mining core solids removal units. This extensive product portfolio enables Aipu to deliver fully integrated solids control solutions tailored to specific operational requirements.

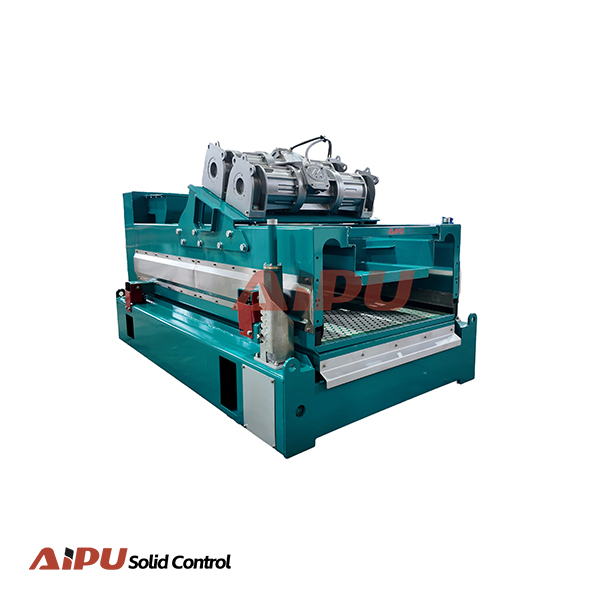

The Hunter series shale shakers form the foundation of Aipu’s solids control systems, providing effective first-stage solids separation of drilling fluids. The product line includes Hunter-MG3, Hunter-MG4, Hunter-MG5, Hunter-Mini, Hunter-MG4V, Hunter-MG5V, Hunter-MG4D, and Hunter-MG4TC models, with capacities ranging from 50 m³/h to 420 m³/h and screen areas spanning 1.35 m² to 8.1 m². The Hunter-MGD dual-motion shale shaker incorporates internationally advanced design concepts, utilizing special motors that allow easy switching between vibration modes during operation, adapting to actual drilling conditions for optimal performance.

For gas removal applications, Aipu manufactures the APLCQ300 vertical degasser, also known as an atmospheric degasser or centrifugal degasser. This highly efficient equipment removes small bubbles from drilling mud, with a flow rate of 300 m³/h and degassing capacity of 30 m³/h. The APZCQ series and APVD vacuum degassers offer additional options, with capacities ranging from 240 m³/h to 360 m³/h, vacuum degrees of -0.02 to -0.04 Mpa, and efficiency ratings of 95% or higher.

Aipu’s mud cleaners combine desanders and desilters for effective second and third-phase solids control. The Hunter series mud cleaners integrate desander cones and desilter cones with bottom shakers, delivering capacities from 120 m³/h to 360 m³/h. Desanders remove solids particles between 44 and 74 μm, while desilters target particles from 15 to 44 μm. All cones are manufactured from 100% polyurethane material with clamp-type connections for easy installation and maintenance.

For ultra-fine solids separation, Aipu offers horizontal spiral decanter centrifuges. The APLW series centrifuges separate solid particles from 2 to 7 microns, with models including APLW355X1257-N, APLW355X1460-N, APLW450X1000-N, APLW450X1350-N, APLW530X1540-N, and APLW600X1019-N. These centrifuges feature drum diameters from 355 mm to 600 mm, speeds up to 3200 rpm, and separation factors reaching 2035G. In non-weighted mud systems, centrifuges separate solid phases larger than 2 microns, effectively solving the problem of ultra-fine harmful solids. In weighted drilling fluids, centrifuges control viscosity and separate ultra-fine particles and colloids. Aipu also manufactures three-phase decanter centrifuges for separating two liquids of different densities while simultaneously discharging solids.

Supporting equipment completes Aipu’s solids control systems. Mud agitators from the APMA series suspend solids and maintain homogeneous mixtures throughout mud tanks, with power options from 5.5 kW to 15 kW. Vacuum transfer pumps, also known as sludge transfer pumps, convey materials with up to 80% solid content, achieving suction distances of 50 meters and discharge distances up to 1000 meters. The APSB centrifugal pump series delivers stable performance with flow rates from 40 m³/h to 255 m³/h, interchangeable with industry-standard designs. Single screw pumps serve as centrifuge feeding pumps, while submersible slurry pumps handle high-concentration solid particle media. Shear pumps provide high shear efficiency for polymer hydration, while jet mud mixers and portable hoppers facilitate mud weighting and preparation. Mud guns prevent solids deposition in mud tanks, and mud gas separators handle gas-cut mud with capacities from 200 m³/h to 420 m³/h.

As a comprehensive Chinese solids control system supplier, Aipu’s manufacturing capabilities are supported by a production base exceeding 50,000 square meters. The facility is equipped with a full range of advanced manufacturing equipment, providing strong support for the production of professional, high-quality products. Strict sand-blasting procedures and application of abrasion and corrosion-resistant coatings ensure product durability across all equipment lines. Aipu has obtained multiple international system certifications and product certifications, along with a number of independent invention patents.

Flexibility is a key strength of this leading supplier. Aipu provides flexible configuration options based on actual user needs. Motor brands including Ital, Vibras, Martin, and Oli are available. Electrical systems are fully customizable, and dual tandem or triple tandem configurations are available for enhanced processing capacity. Surface color can also be customized to meet specific requirements. ATEX, IECEX, and other certifications are available as options for international applications. Material options include plain carbon steel or hydrogen sulfide resistant steel, ensuring compatibility with diverse drilling environments.

With products delivered to over 30 countries and regions worldwide, Aipu has earned customer trust through reliable quality and industry recognition through unwavering commitment to its founding principles. Cumulative deliveries exceed 300 system-equivalent products, demonstrating the company’s capacity to serve large-scale drilling operations with complete, integrated solids control solutions.

Aipu’s service philosophy encompasses circumspect support throughout the entire sales procedure. Experienced professionals ensure optimal proposals based on thorough understanding of user needs and accumulated expertise. By selecting components from qualified suppliers strictly and manufacturing products at a high degree of standardization, Aipu decreases operation and maintenance costs for its customers. This approach delivers true cost-effective solutions, creating maximum value for users by enhancing their efficiency and competitiveness.

Looking ahead, Aipu continues to forge ahead, hand in hand with global partners, injecting more strength into oil and gas drilling and production operations worldwide. As a leading Chinese solids control system supplier, the company remains committed to advancing solids control technology and supporting the global drilling industry with reliable, integrated systems that deliver consistent performance across all stages of drilling fluid management.
