China Vibrating Screen for Drilling Mud

Aipu Solid Control Co., Ltd. is a leading manufacturer of vibrating screens for drilling mud in China, with over 20 years of specialized industry experience. The company focuses on mud solids control and treatment for oil and gas drilling and production, delivering equipment that forms the critical first line of defense in drilling fluid management. Through continuous innovation and responsive product development, Aipu has established itself as a trusted source for high-performance vibrating screens that effectively separate solids from drilling fluid systems.

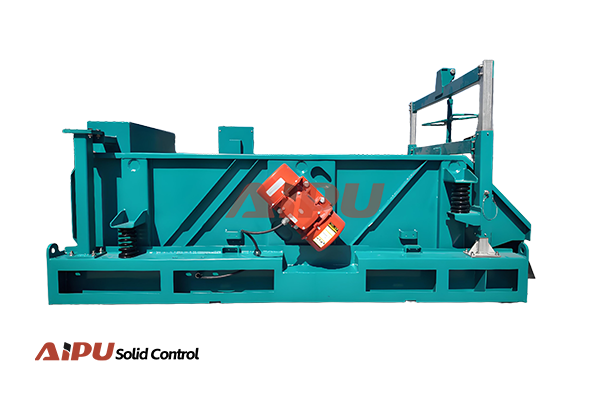

The vibrating screen, commonly referred to as a shale shaker in drilling operations, serves as the primary solids separation equipment in drilling fluid circulation systems. Aipu’s Hunter series vibrating screens are specifically engineered for this essential function, providing efficient solid-liquid separation that protects downstream equipment and maintains drilling fluid properties. The product line includes Hunter-MG3, Hunter-MG4, Hunter-MG5, Hunter-Mini, Hunter-MG4V, Hunter-MG5V, Hunter-MG4D, and Hunter-MG4TC models, each designed to handle specific flow rates and separation requirements.

Capacity specifications across the Hunter series range from 50 m³/h to 420 m³/h, accommodating drilling operations of various scales. Screen areas span from 1.35 m² to 8.1 m², with the number of screens per unit varying from 2 to 8 depending on the model. This range allows drilling contractors to select equipment that precisely matches their circulating fluid volumes and solids loading conditions. The adjustable deck angle, typically ranging from -1 to +5 degrees on most models, enables operators to fine-tune separation performance based on drilling conditions, formation characteristics, and drilling fluid properties.

The Hunter-MGD dual-motion vibrating screen represents a significant advancement in drilling mud screening technology. This unit incorporates specially designed motors that allow operators to switch between vibration modes during active operation. The ability to adapt vibration patterns to actual drilling conditions ensures optimal separation efficiency across varying operational scenarios. Achieving dual motion functionality with only two motors reflects engineering sophistication that prioritizes reliability and simplicity while delivering advanced performance capabilities.

Aipu’s manufacturing capabilities support the production of high-quality vibrating screens. The company operates a production facility exceeding 50,000 square meters, equipped with advanced manufacturing equipment that ensures precision fabrication and consistent quality. Strict sand-blasting procedures prepare surfaces for specialized abrasion and corrosion-resistant coatings, protecting equipment against the harsh conditions encountered in drilling operations. These manufacturing practices ensure that each vibrating screen delivers reliable performance over extended service periods.

Quality assurance is central to Aipu’s operations. The company has obtained multiple international system certifications and product certifications, demonstrating compliance with globally recognized quality standards. A number of independent invention patents further validate the company’s engineering expertise. These credentials provide assurance that Aipu vibrating screens meet the rigorous demands of modern drilling operations, where equipment reliability directly impacts operational efficiency and cost management.

Recognizing that drilling operations vary significantly across different regions and applications, Aipu offers extensive customization options for its vibrating screens. Motor brand selections include Ital, Vibras, Martin, and Oli, allowing customers to specify components that align with their maintenance preferences and regional availability. Screen panel options include steel framed and composite framed designs, each offering distinct advantages in terms of durability, screen life, and separation efficiency. Electrical systems are fully customizable to accommodate various voltage and frequency requirements encountered in international drilling operations. For operations requiring enhanced processing capacity, dual tandem or triple tandem configurations are available. Surface color can be customized to meet corporate branding or operational identification requirements. ATEX, IECEX, and other certifications are available for operations in hazardous environments.

The application of Aipu vibrating screens extends across the full spectrum of drilling operations. As the first stage of solids control, these screens remove drill solids from the circulating fluid system, preventing recirculation of abrasive particles that could damage pumps, increase wear on downstream equipment, and degrade drilling fluid properties. Efficient solid-liquid separation at this initial stage reduces overall disposal costs, minimizes wasted drilling fluid losses, and contributes to lower total drilling costs. The equipment’s robust design ensures consistent performance across varied conditions, from conventional vertical wells to complex directional and horizontal drilling programs.

Aipu’s global footprint demonstrates the reliability of its vibrating screens. Products have been delivered to over 30 countries and regions worldwide, with cumulative deliveries exceeding 300 system-equivalent products. This international presence reflects the company’s capacity to serve drilling operations across diverse geological formations, climate conditions, and operational environments. Customer trust has been earned through consistent quality and reliable performance, supported by the company’s commitment to its founding principles.

The service approach at Aipu encompasses comprehensive support throughout the customer engagement process. Experienced application engineers work with clients to understand specific operational requirements before proposing optimal equipment configurations. By selecting components from qualified suppliers and manufacturing products with high standardization, Aipu helps customers minimize operation and maintenance costs while maintaining equipment reliability. This approach delivers cost-effective solutions that enhance operational efficiency and competitiveness.

Looking forward, Aipu continues to advance its vibrating screen technology, collaborating with global partners to strengthen oil and gas drilling and production operations worldwide. As a leading manufacturer of vibrating screens for drilling mud in China, the company remains dedicated to advancing solids control technology and supporting the global drilling industry with equipment that combines engineering expertise, manufacturing quality, and operational reliability.
