What Does a Shale Shaker Do? Understanding Its Critical Role in Drilling Operations

In the world of oil and gas drilling, maintaining the quality and performance of drilling fluid is paramount to operational success. Among the essential equipment in a solids control system, the shale shaker stands as the first and most crucial line of defense. But what exactly does a shale shaker do, and why is it so important for modern drilling operations?

The Primary Function of a Shale Shaker

A shale shaker is a vibrating screening device designed to separate large solid particles, or drill cuttings, from the drilling fluid (commonly known as drilling mud) as it returns from the wellbore. As the drill bit grinds through rock formations deep underground, it generates a continuous stream of rock fragments and debris. These solids are carried to the surface by the circulating drilling mud.

Without effective first-stage solids separation, these abrasive particles would recirculate back into the well, causing accelerated wear on expensive downhole equipment, reducing drilling efficiency, and significantly increasing operational costs. The shale shaker removes the bulk of these large cuttings—typically particles larger than 74 microns—before the drilling fluid proceeds to finer stages of solids control.

How a Shale Shaker Works

The working principle of a shale shaker is elegantly simple yet highly effective. Mud-laden with cuttings flows onto a vibrating screen bed. High-frequency vibration, generated by powerful motors, creates a fluidized motion that:

1. Facilitates Liquid Passage: The vibration helps the liquid portion of the drilling mud pass rapidly through the fine mesh screens.

2. Transports Solids: Simultaneously, the angled vibrating deck conveys the separated solids toward the discharge end, where they are discarded for further treatment or disposal.

3. Maximizes Recovery: The process ensures that valuable drilling fluid is recovered and returned to the active mud system, minimizing mud losses and reducing overall drilling costs.

Key Benefits of Effective Shale Shaker Operation

• Reduced Drilling Costs: By removing abrasive solids early, the shale shaker protects downstream equipment like desanders, desilters, and centrifuges, extending their service life and reducing maintenance expenses.

• Improved Drilling Performance: Cleaner drilling mud maintains its designed rheological properties, leading to better hole cleaning, faster penetration rates, and reduced risk of stuck pipe incidents.

• Environmental Compliance: Efficient solids separation is the first step toward responsible waste management, reducing the total volume of drilling waste requiring disposal.

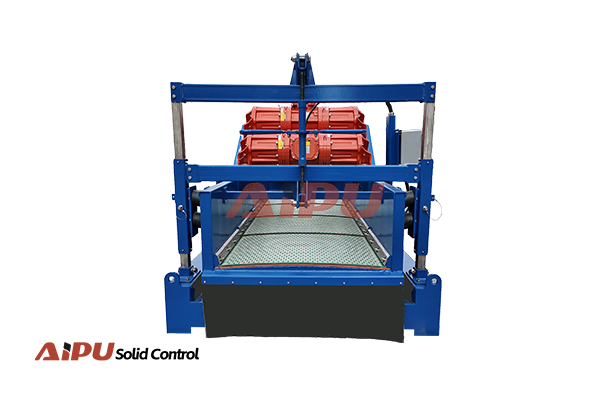

AIPU Hunter-MG Shale Shaker: Engineered for Excellence

For operators seeking reliability and performance, the AIPU Hunter-MG series shale shaker delivers exceptional results in demanding drilling environments. Designed with over 20 years of industry expertise, the Hunter-MG line offers:

• High Capacity Options: Models ranging from the compact Hunter-Mini (50 m³/h) to the robust Hunter-MG4T (420 m³/h), ensuring a perfect fit for any rig size.

• Adjustable Deck Angle: A variable angle adjustment from -1° to +5° allows operators to optimize solids conveyance and fluid retention time based on real-time drilling conditions.

• Flexible Configuration: Options include various screen numbers, motor brands (Italvibras, Martin, Oli), and customizable electrical systems to meet specific project requirements.

• Dual-Motion Capability: For enhanced versatility, the Hunter-MGD dual-motion shaker can switch between balanced elliptical and linear vibration modes, adapting seamlessly to changing formation characteristics.

The Hunter-MG series provides efficient solid-liquid separation that lays a solid foundation for subsequent treatment processes while significantly lowering overall disposal and drilling costs.

Conclusion

Understanding what a shale shaker does reveals its indispensable role in modern drilling. It is far more than a simple vibrating screen—it is a precision tool that safeguards equipment, preserves expensive drilling fluid, and promotes efficient, environmentally responsible operations. By investing in high-quality shale shaker technology like the AIPU Hunter-MG series, drilling contractors can achieve superior solids control performance and a stronger bottom line.
