What Does a Shale Shaker Do? A Professional Overview of Its Function in Drilling Operations

In oil and gas drilling operations, maintaining clean and stable drilling fluid is essential for efficiency, safety, and cost control. One of the most important pieces of equipment responsible for this task is the shale shaker. Installed at the surface of the rig, the shale shaker serves as the first and most critical stage of the solids control system.

Understanding what a shale shaker does—and why it matters—is fundamental for anyone involved in drilling fluid management or rig operations.

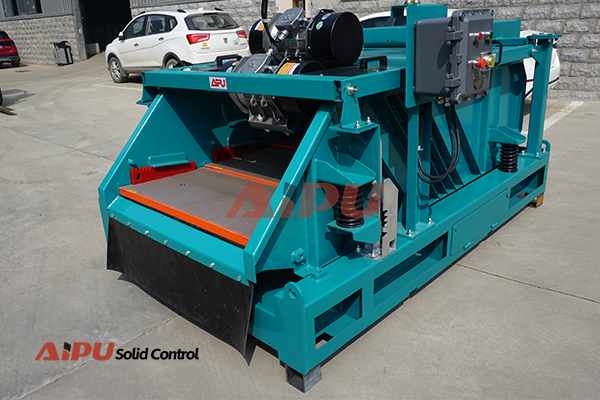

What Is a Shale Shaker?

A shale shaker is a mechanical solids separation device used primarily in drilling operations for oil, gas, water wells, and geothermal projects. Its main purpose is to remove large solid particles, known as drill cuttings, from the drilling fluid as it returns from the wellbore.

Because it operates at the very beginning of the solids control process, the shale shaker has a direct impact on the performance of the entire drilling fluid system.

How Does a Shale Shaker Work?

Shale shakers work on the principle of vibratory screening. Drilling fluid mixed with solid cuttings flows onto a set of vibrating screens mounted on a shaker basket. The screens are manufactured with specific mesh sizes to separate solids by particle size.

During operation:

• The vibration moves solid cuttings across the screen surface toward the discharge end.
• Liquid drilling fluid and fine particles pass through the screen openings.
• Separated solids are discharged for collection or disposal, while the cleaned fluid flows back into the active mud system.

Different vibration patterns, such as linear or elliptical motion, are used to achieve optimal solids removal efficiency under varying drilling conditions.

Core Functions of a Shale Shaker

1. Primary Solids Removal

The shale shaker removes the largest and most abrasive drilled solids from the drilling fluid. Eliminating these solids early reduces mechanical wear and prevents excessive solids loading throughout the system.

2. Drilling Fluid Recovery and Preservation

Drilling fluid is a high-value resource designed to perform critical functions such as cooling the drill bit, stabilizing the wellbore, and transporting cuttings. By separating solids and allowing the fluid to be reused, shale shakers significantly reduce fluid loss and chemical consumption.

3. Protection of Downstream Equipment

Downstream solids control equipment, such as desanders, desilters, centrifuges, and mud pumps, cannot tolerate large solids. Effective shale shaker performance prevents clogging, erosion, and premature equipment failure, helping extend service life and minimize downtime.

Role in the Solids Control System

The shale shaker is the first stage of a multi-step solids control process. After passing through the shaker:

• The drilling fluid is further cleaned by hydrocyclones that remove smaller particles.
• Centrifuges may then be used to remove ultra-fine solids.

Since no downstream equipment is designed to handle large cuttings efficiently, the performance of the shale shaker largely determines the overall effectiveness of the solids control system.

Why Shale Shaker Performance Is Critical

Poor shale shaker performance can result in:

• Increased drilling fluid density and viscosity
• Reduced drilling rate of penetration
• Higher pump pressures and energy consumption
• Elevated maintenance and repair costs
• Increased risk of operational problems such as stuck pipe and wellbore instability

Conversely, a properly selected and well-operated shale shaker enhances drilling efficiency, improves fluid quality, and supports safer, more economical operations.

Conclusion

So, what does a shale shaker do? At its core, it separates solid drill cuttings from drilling fluid. In practice, it serves as the foundation of effective drilling fluid management.

By protecting drilling fluid integrity, safeguarding equipment, and improving operational efficiency, the shale shaker remains one of the most essential components on any drilling rig.
