Oilfield Shale Shaker Working Principle and Operation Guide

In oil and gas drilling operations, the shale shaker stands as the first and most critical stage of the solids control system. It is specifically designed to separate large solid particles (drill cuttings, rock debris) from drilling mud, safeguarding downstream equipment, maintaining mud performance, and reducing overall drilling costs. AIPU, a professional solids control equipment manufacturer with over 20 years of industry expertise, delivers high-performance shale shakers (including the HUNTER-MG Series and Hunter-MGD Dual-motion Series) tailored for global drilling projects. This guide elaborates on the working principle, core components, operation steps, maintenance tips, and AIPU’s premium shale shaker solutions.

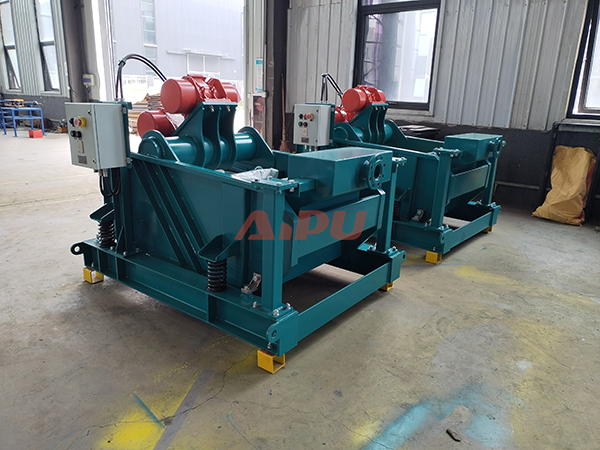

What Is an Oilfield Shale Shaker?

An oilfield shale shaker is a vibrating screening device that uses high-frequency vibration and screen mesh grading to achieve efficient solid-liquid separation. It processes drilling mud returning from the wellbore, removing coarse cuttings while allowing clean mud to flow back into the mud tank for recycling. As the primary solids separation tool on a drilling rig, its performance directly impacts the efficiency of subsequent equipment (desanders, desilters, centrifuges) and the quality of drilling fluid.
AIPU’s shale shakers are engineered for reliability and versatility:

• HUNTER-MG Series: High treating capacity, larger effective screen area, flexible adjustment angle, and quick-replace screen design, ideal for standard onshore and offshore drilling.
• Hunter-MGD Dual-motion Shale Shaker: Features switchable linear/elliptical vibration modes, adapting to diverse drilling conditions (high-flow low-viscosity mud or high-viscosity sticky mud). Only 2 motors achieve dual motion, a globally advanced design favored by European and Middle Eastern clients.

Core Working Principle of Shale Shakers

The shale shaker operates on a vibration-driven screening mechanism, with four key steps defining its function:

1. Vibration Force Generation: Two vibration motors rotate in opposite directions, producing powerful, controlled vibration (measured in G-force). This vibration drives the screen deck to move in linear, elliptical, or dual motion trajectories.
2. Uniform Mud Distribution: Returning drilling mud flows into the shaker’s hopper (base) and is evenly distributed across the screen surface via a weir feeder, maximizing screen utilization.
3. Solid-Liquid Separation: Under high-frequency vibration, liquid phase and fine particles pass through the screen mesh into the mud tank below. Larger solid cuttings are retained on the screen and conveyed toward the discharge end.
4. Clean Mud Recycling & Cuttings Discharge: Clean mud flows back to the mud circulation system for reuse. Separated cuttings are discharged to a holding tank for further treatment or disposal.

Vibration Modes & Applications

Different vibration modes optimize performance for specific drilling conditions:

• Linear Motion: Strong vibration force, fast cuttings conveyance, suitable for heavy mud, high flow rates, and large cuttings.
• Elliptical Motion: Smooth movement, longer mud retention time, better for fine screens and high-viscosity/sticky mud.
• Dual Motion (AIPU Hunter-MGD): Switches between linear and elliptical modes in real time, adapting to changing formation and mud conditions. Combines high throughput (linear) and efficient fine separation (elliptical), ideal for complex wells.

Key Components of AIPU Shale Shakers

AIPU’s shale shakers integrate durable, high-performance components for long-term reliability:

1. Vibration Motors: Premium brands (Ital-Vibras/Martin/Oli) deliver stable G-force (6.0–7.0G for Hunter-MGD) and vibration.
2. Screen Panels: Steel-framed or composite-framed screens with large effective area, quick-replace design, and high wear resistance.
3. Screen Deck: Adjustable angle (-1° to +5° for HUNTER-MG, -3° to +3° for Hunter-MGD) to optimize cuttings dryness and processing capacity.
4. Vibration Isolation System: High-quality springs/rubber mounts reduce noise, absorb vibration, and extend equipment life.
5. Hopper & Discharge Chute: Sturdy carbon steel construction with anti-corrosion coating, ensuring efficient mud collection and cuttings discharge.

Standard Operation Guide for Shale Shakers

Proper operation ensures maximum efficiency, minimizes downtime, and extends equipment life. Follow these steps for AIPU shale shakers:

Pre-Operation Inspection

1. Check all bolts, nuts, and fasteners for tightness (focus on screen clamps, motor mounts, and deck connections).
2. Inspect screen panels for damage (tears, holes, or blockages) and ensure proper tensioning.
3. Verify vibration motors are securely mounted and electrical connections are safe and insulated.
4. Check deck angle adjustment: Set based on mud viscosity and flow rate (refer to AIPU’s technical parameters).
5. Confirm the hopper and discharge chute are clear of debris.

Startup Procedure

1. Turn on the electrical system (AIPU supports customizable voltages: 380V/50HZ, 460V/60HZ).
2. Start the vibration motors first, allowing the shaker to reach stable vibration before introducing mud.
3. Gradually open the mud inlet valve, ensuring uniform mud distribution across the screen (avoid overloading).
4. Monitor vibration trajectory: For Hunter-MGD, switch between linear/elliptical modes based on mud conditions.
5. Check cuttings discharge: Ensure dry, free-flowing cuttings and no mud overflow.

During-Operation Monitoring

1. Vibration Performance: Maintain stable G-force (6.0–7.0G for Hunter-MGD); abnormal vibration indicates loose bolts or motor issues.
2. Screen Condition: Regularly check for blockages or damage; clean screens promptly if blinded by sticky mud.
3. Mud Flow: Adjust inlet flow to match shaker capacity (180m³/h for HUNTER-MG3, 140m³/h for Hunter-MGD).
4. Cuttings Dryness: Optimize deck angle or vibration mode to reduce mud loss in cuttings.
5. Noise & Temperature: Unusual noise or motor overheating indicates mechanical issues; shut down for inspection.

Shutdown Procedure

1. Gradually close the mud inlet valve, allowing all mud to drain from the screen.
2. Run the vibration motors for 3–5 minutes to clear residual cuttings from the screen.
3. Turn off the electrical system and disconnect power.
4. Clean the screen panels, hopper, and discharge chute with water (avoid high-pressure wash guns to prevent screen damage).

Essential Maintenance Tips

Regular maintenance is critical to extend shaker life and ensure consistent performance:

1. Screen Maintenance: Replace damaged screens promptly; inspect tension weekly. AIPU’s quick-replace design reduces screen change time by 50%.
2. Motor Care: Lubricate motor bearings monthly; check electrical connections for wear.
3. Bolt Tightening: Retorque all fasteners monthly (vibration loosens bolts over time).
4. Anti-Corrosion: Touch up damaged coating quarterly; AIPU’s heavy-duty anti-corrosion paint resists mud and saltwater.
5. Vibration Isolation: Check springs/rubber mounts for wear; replace every 6–12 months.
6. Dual-Mode System (Hunter-MGD): Inspect mode-switching mechanism monthly for smooth operation.

AIPU Shale Shaker: Advantages for Global Drilling

AIPU’s shale shakers stand out in the market with unmatched performance and customization:

• High Efficiency: Large screen area and optimal vibration design deliver 95%+ solid-liquid separation efficiency.
• Durability: High-quality raw materials and heat treatment ensure long service life in harsh drilling environments.
• Flexibility: Customizable motor brands, screen types, electrical systems, and surface colors to meet regional and project needs.
• Global Compliance: API Spec Q1, ISO 9001:2015, and other international certifications; compliant with ATEX/IECEX for hazardous areas.
• Proven Performance: Delivered to over 30 countries/regions, with 300+ system-equivalent products in operation.

Conclusion

The shale shaker is indispensable for efficient, cost-effective, and safe oil and gas drilling. Understanding its working principle, mastering standard operation, and adhering to regular maintenance are key to maximizing performance and minimizing downtime. AIPU’s HUNTER-MG Series and Hunter-MGD Dual-motion Series shale shakers combine advanced technology, durable construction, and flexible customization, making them the ideal choice for global drilling projects. Partner with AIPU for reliable solids control solutions that drive your drilling success!
