How to Improve Drilling Efficiency with a Shale Shaker

Success in drilling operations often comes down to the details — and knowing how to approach critical equipment decisions separates high-performing projects from average ones. Whether you are setting up a new rig, upgrading existing equipment, or optimizing current operations, making the right choice in solids control equipment delivers measurable returns. Aipu Solid Control has helped over 300 systems achieve operational excellence through proper equipment selection and implementation.

Several interrelated factors determine the real-world performance of a shale shaker. Screen area is the most fundamental — more area means more capacity. Aipu's Hunter series ranges from 1.35 m² on the compact Mini model to 8.1 m² on the triple-tandem MG4T configuration. Vibration characteristics — amplitude, frequency, and G-force — affect how effectively solids are separated and conveyed. Aipu equipment operates at industry-optimized parameters with G-forces up to 7.5G. Screen mesh selection must balance cut point requirements against throughput needs. Deck angle adjustment, available from -1° to +5° on most Aipu models, provides operational flexibility. Finally, fluid properties like viscosity and solids loading significantly impact performance — and these are exactly the variables that a well-designed shaker must accommodate.

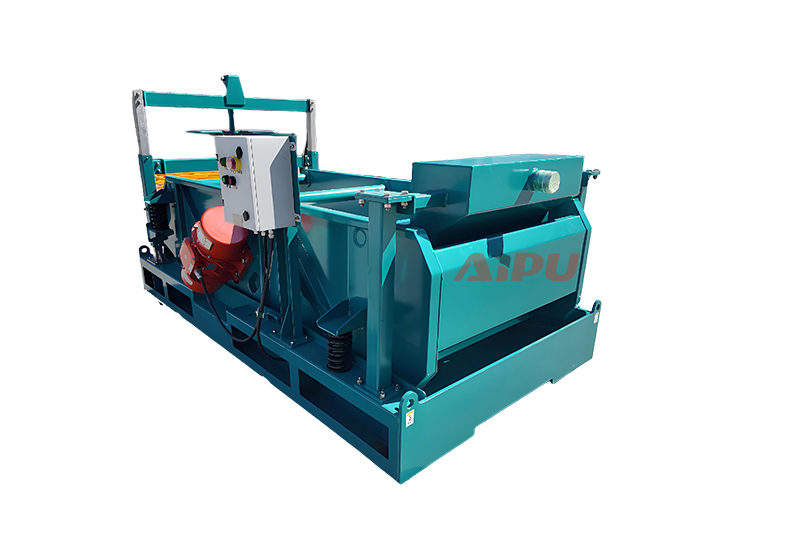

Aipu's Hunter series shale shaker lineup includes the following models, each engineered for specific operational requirements:

Hunter-MG4T — Processing capacity of 420 m³/h, screen area of 8.1 m² with 12 screens, powered by 3×2×1.72 kW vibration motors. Available as a triple tandem configuration with screen deck angle adjustment from -1° to +5°.

Hunter-MG3 — Processing capacity of 120 m³/h, screen area of 2.0 m² with 3 screens, powered by 2×1.5 kW vibration motors. Available as a single deck configuration with screen deck angle adjustment from -1° to +5°.

Hunter-MG4V — Processing capacity of 120 m³/h, screen area of 2.7 m² with 4 screens, powered by 2×1.72 kW vibration motors. Available as a high-speed configuration with screen deck angle adjustment from -1° to +5°.

Hunter-MG4 — Processing capacity of 140 m³/h, screen area of 2.7 m² with 4 screens, powered by 2×1.72 kW vibration motors. Available as a single deck configuration with screen deck angle adjustment from -1° to +5°.

What distinguishes Aipu from other shale shaker providers is a combination of manufacturing excellence, technical capability, and customer commitment. The company's API-certified production facility employs advanced manufacturing technologies alongside experienced craftsmen who understand drilling equipment. Each Hunter series shaker undergoes rigorous quality inspection by five dedicated QC specialists before shipment. The flexibility to customize — from electrical standards and motor brands to screen materials and color specifications — means each customer receives equipment optimized for their specific application. Aipu's track record of repeat orders from major international clients including Pertamina and Kuwait Drilling Company speaks to the reliability and value delivered. With over 300 systems in operation globally and core team experience exceeding 15 years, Aipu represents a proven choice for drilling operations.

Aipu Solid Control has earned the trust of drilling operations across more than 20 countries through consistent quality, reliable performance, and responsive service. Our Hunter series shale shakers represent the culmination of over 15 years of engineering refinement and field experience. From the compact Hunter-Mini for HDD operations to the high-capacity Hunter-MG4T triple-tandem for major land rigs, Aipu has the right equipment for your application. Contact us at info@aipusolidcontrol.com to learn more about how Aipu shale shakers can improve your drilling efficiency, reduce your operating costs, and support your environmental compliance goals. Visit our shale shaker page for detailed specifications and technical documentation.
